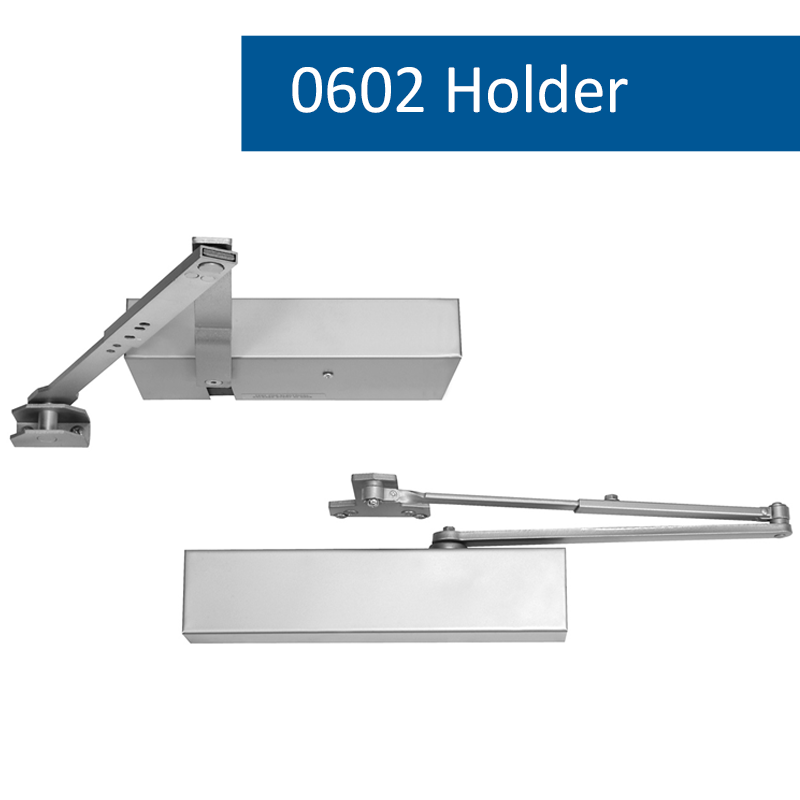

Rixson 0602 Electrified Closer-Holder Smok-Chek V - Holder Pull Side Mounting/Closer Push Side Mounting
The Rixson 0602 Smok-Chek V series - Holder Pull Side Mounting/Closer Push Side Mounting electromechanical closer/holder. Rixson SMOK-CHEK V is designed to hold fire/smoke doors open, and release when activated by a fire alarm system. as a non-detected unit in buildings with existing alarm systems. Available in 24VAC/DC or 120VAC
Rixson ® was the first architectural hardware company to have fire/life-safety Rixson closers and holders. It remains an industry leader
with several distinctly different holding devices. This model is non-detectors that would be connected only to the alarm system. BE ADVISED THAT THESE PRODUCTS ARE NOT DESIGNED TO BE MANUALLY PULLED OUT OF HOLD OPEN. If continual cycling is necessary use a separate switch to release.
Rixson 0602 Electrified Closer-Holder Features
- Pull side mount for a holder
- Push side mount for closer
- Hold open range 85 °- 180 °
- Mounts on 2" header
- Adjustable spring surface closer
- Maximum reveal 1/8"
- Concealed switch disconnects hold open
- Sprayed finishes
Rixson 0602 Electrified Closer-HolderSpecifications
| Application: |
Cross corridor doors - swinging in the same direction |
| Handing: |
Non-handed |
| Maximum Door Weight: |
250 lbs |
| Maximum Door Height: |
Doors up to 4'0" |
| Voltage: |
24VAC/DC 8ma, 120VAC 17ma |
| Weight: |
15 lbs |
| Warranty: |
2 Years Limited Warranty |
| Manufacturer: |
Rixson |
Rixson 0602 Electrified Closer-Holder Certifications
| ANSI: |
C00191 |
| UL: |
UL/ULC Listed |
