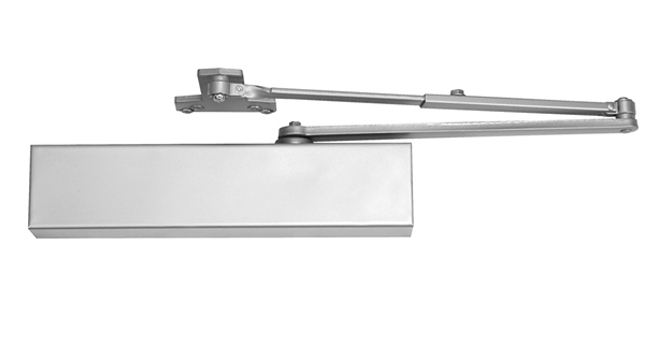

Rixson 0602 Electrified Closer-Holder Smok-Chek V - Holder Pull Side Mounting/Closer Push Side Mounting

The Rixson 0602 Electrified Closer-Holder is part of the Smok-Chek V series, engineered to combine reliable door control with integrated electromagnetic hold-open functionality. This configuration mounts the holder on the pull side and the closer on the push side, making it ideal for corridor and cross-corridor fire and smoke barrier doors that must remain open under normal conditions and close automatically when triggered. Designed to interface with fire alarm and smoke detection systems, the 0602 holds the door open until power is interrupted, then releases and closes the opening in a controlled manner. It offers a dependable, code-compliant solution for commercial and institutional life-safety applications.

Features

• Combines a door closer and electromagnetic holder in a single integrated unit.
• Holder mounts on the pull side while the closer mounts on the push side for flexible installation.
• Releases the door automatically upon signal from a fire alarm or smoke detection system.
• Part of the Smok-Chek V line built for fire and smoke barrier door assemblies.
• Provides controlled, reliable door closing for consistent latching.

Functional Details

The 0602 keeps the door held open at a preset position through an electromagnet energized by the building's life-safety system. When the alarm activates or power is interrupted, the holder de-energizes and releases the door, allowing the closer to bring it to the fully closed position for compartmentalization against smoke and fire spread.
