Description

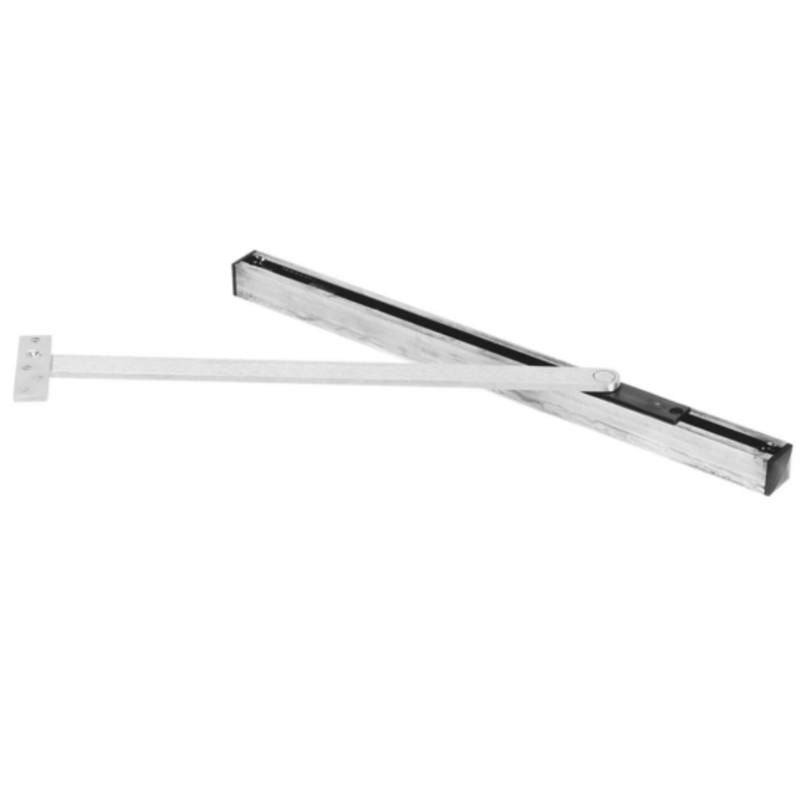

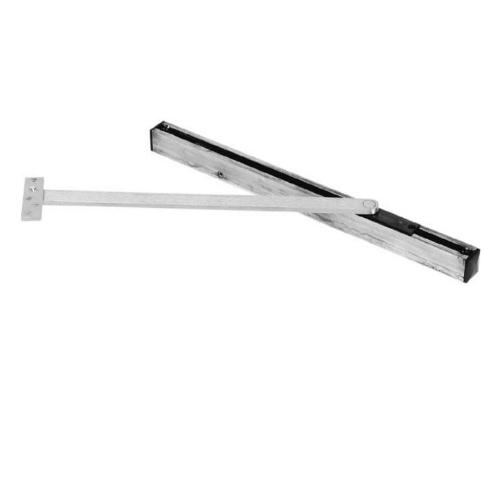

Rixson 1-326-630 Concealed Overhead Door Stop, Heavy Duty, With Hold Open, For Single Or Double acting Doors, 1 3/4 Tk Door, 110 Deg Max, Non Handed, US32D-630 Satin Stainless Steel Finish
All Rixson overhead stops and holders shall be from a single manufacturer. Rixson Standard-duty models are used for interior or low to medium-traffic doors. Heavy-duty models used for exterior or high-traffic doors or doors are subject to abuse. For extremely abusive areas or high winds use the double lever arm type. Coordinate dead stop and/or hold open location with concealed floor closers. Rixson Checkmate products provide hold open and/or dead stop.
Features:
- Non-handed
- Slide track design
- Recommended for high traffic, heavy abuse installations
- Heavy shock absorber spring provides 5 -7 ° compression before the dead stop
- LS option omits spring for special applications
- Complete screw packet for installation in wood and machine screws for door and frame
- For security areas, Torx screws available for exposed fasteners
- Standard architectural finishes
- Durable slider cam and shock block
- 110 ° maximum opening
- 1-3/4" minimum door thickness, for thicker doors, note thickness when ordering
- 1-3/16" square channel
Specifications
Application: | Concealed Mount - Interior or Exterior - High Traffic Doors |
Butts Offset Pivots: | 33-1/16 - 38 |
Center Hung Pivots: | 36-1/16 - 41 |
Weight: | 4.5 lbs |
Warranty: | 2 Years Limited Warranty |
Manufacturer: | Rixson |
Certifications
ANSI: | 156.8, Grade 1 and 2, C01511 |
UL: | UL/ULC Listed |
