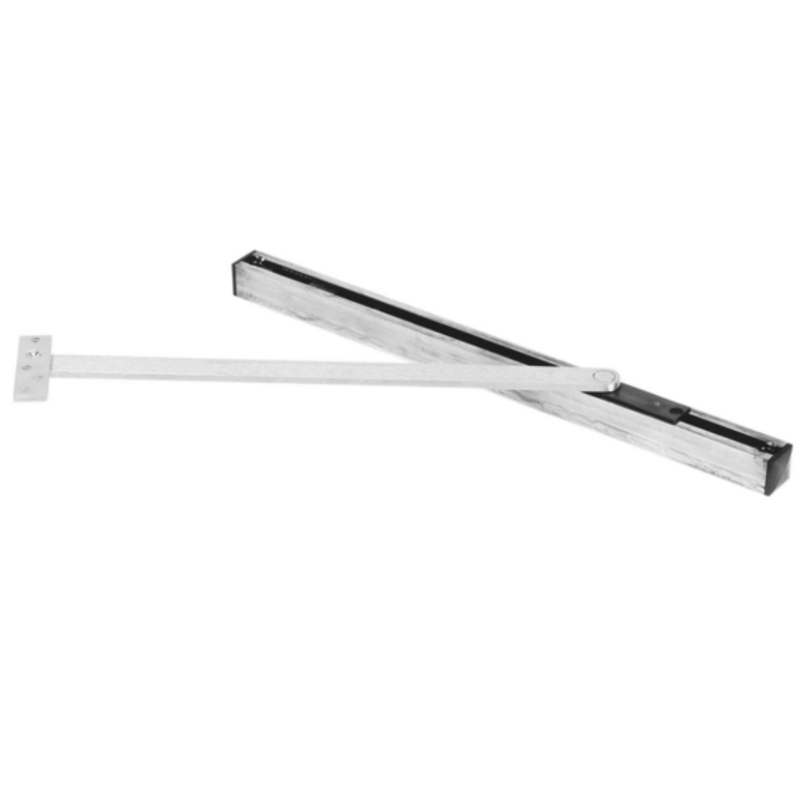

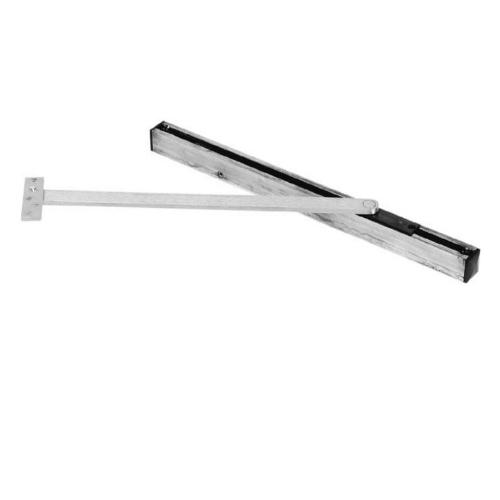

Rixson 1-336-630 Concealed Overhead Door Stop, Heavy Duty, Satin Stainless Steel Finish

  • SKU: 1336630
Rixson 1-336-630
Zoomed view
All RIXSON Products

Rixson 1-336-630 Concealed Overhead Door Stop, Heavy Duty, Satin Stainless Steel Finish

  • SKU: 1336630
  • ✓
    Available (1 Week)
    1 Week Lead Time
Your Price
$425.00/ea
0% Net 30 Days: Apply Now

Rixson 1-336-630 Concealed Overhead Door Stop, Heavy Duty, Non-Handed, for Single- or Double-Acting Doors, 1-3/4" Minimum Door Thickness, 110° Maximum Opening, 33-1/16" - 38" Door Width for Butt Offset Pivots, 36-1/16" - 41" Door Width for Center Hung Pivots, US32D Satin Stainless Steel Finish

The Rixson 1-336-630 is a heavy-duty concealed overhead door stop engineered for commercial applications requiring reliable performance and durability. This non-handed unit accommodates both single- and double-acting doors with a minimum thickness of 1-3/4", limiting door opening to 110° for controlled closure. Compatible with multiple pivot configurations—33-1/16" to 38" openings for butts offset pivots and 36-1/16" to 41" for center hung pivots—it delivers versatile installation flexibility. The US32D satin stainless steel finish resists corrosion and maintains a professional appearance in high-traffic environments. Ideal for facilities demanding precision hardware that withstands frequent use while protecting walls and adjacent structures from impact damage.

Application

  • Interior or exterior doors
  • Single or double acting
  • Non-handed
  • Recommended for high traffic, heavy abuse installations

Features

  • 33-1/16" - 38" Door Width for Butt Offset Pivots
  • 36-1/16" - 41" Door Width for Center Hung Pivots
  • Heavy-duty
  • Slide track design
  • Stop, friction stay or hold open functions
  • 1-3/4" minimum door thickness. For thicker doors, specify when ordering
  • 110° maximum opening
  • Heavy shock absorber spring provides 5-7° compression before dead stop
  • LS option omits spring for special applications
  • Durable slider cam and shock block
  • Surface on/off knob on hold open models
  • 1-3/16" square channel
  • Complete screw packet for installation in wood and machine screws for door and frame.
  • For security areas, Torx® screws available for exposed fasteners

Compliance

  • ANSI/BHMA A156.8, Grade 1 Certified (Hold Open,
    Stop Models)
  • Stop function UL listed for fire door assemblies
 Butt Offset Pivots Center Hung Pivots Friction H.O. Stop
24 - 28 - 1-116 1-126 1-136
28-1/16 - 33 30 - 36 1-216 1-226 1-236
33-1/16 - 38 36-1/16 - 41 1-316 1-326 1-336
38-1/16 - 43 41-1/16 - 46 1-416 1-426 1-436
43-1/16 - 48 46-1/16 - 50 1-516 1-526 1-536

Manufacturer Rixson
SKU 1-336-630
Origin USA
Unit of Measure Each
Base Material Stainless Steel
Limited Warranty 2 Year



Product Cut Sheet
