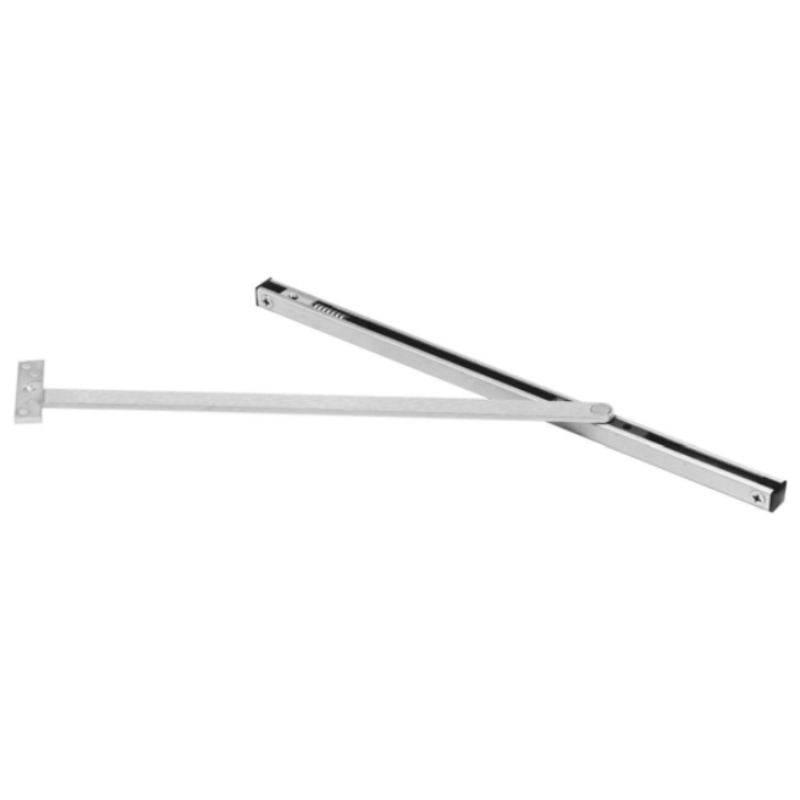

Rixson 10-236-630 Overhead Door Stop Surface Mounted, Dr Width Use Butts or Pivots, Standard Duty, Adjustable, 24 1/6-30 Inch, Max 110 Degrees, 1-3/4 Inch Thick Door, Non Handed, 24-1/16" - 30" Door Width for Butt Offset Pivots, 26-9/16" - 32" Door Width for Center Hung Pivots, US32D Satin Stainless Steel Finish

The Rixson 10-236-630 overhead door stop provides reliable hold-open control for standard-duty commercial doors. This surface-mounted unit is compatible with butt hinges, offset pivots, and center-hung pivot systems, serving door openings from 24-1/16" to 32" depending on hinge type. Featuring adjustable operation up to 110 degrees, it accommodates 1-3/4" thick doors and delivers consistent performance in high-traffic settings. Constructed from satin stainless steel for enhanced durability and corrosion resistance, this non-handed stop simplifies installation across varied architectural applications. A dependable choice for facilities requiring precision door management in compact or standard opening sizes.

Application

• Interior or exterior doors

• Doors are single acting

• Non-handed

• Recommended for high traffic, heavy abuse installations

Features

• Standard duty, adjustable

•  24-1/16" - 30" Door Width for Butt Offset Pivots, 26-9/16" - 32" Door Width for Center Hung Pivots


• Slide track design

• Degree of opening fully adjustable and can be adapted to changing needs

• Heavy shock absorber spring provides compression before deadstop

• Can be ordered specifically as a stop, friction stay, or hold open.

• Multi-function unit is shipped as a stop. Can be converted to a hold open or friction in field. 5012- PKG (Adapter kit) included

• Complete screw packet with thru-bolts for door, wood and machine screws for frame

• Torx® screws optional for security applications, but heavy-duty units should be considered for high-security applications

• Durable slider cam and shock block

• 110° maximum opening

• 3/4" square channel

• For pull side mounting or flush and rabbeted mounting on push side use angle jamb bracket adapter 5258

Compliance

• ANSI/BHMA A156.8, Grade 1 Certified (

  Stop Models)

• Stop function UL listed for fire door assemblies
