Description

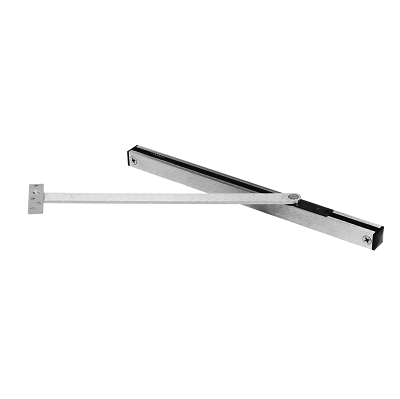

Rixson 10-326-630 Overhead Door Stop Surface Mounted, With Hold Open, Dr Width Use Butts or Pivots, 30 1/16-36 In, Max 110 Deg, 1 3/4 Tk Dr, Non Handed, US32D Satin Stainless Steel
All Rixson overhead stops and holders shall be from a single manufacturer. Rixson Standard-duty models are used for interior or low to medium-traffic doors. Heavy-duty models used for exterior or high-traffic doors or doors are subject to abuse. For extremely abusive areas or high winds use the double lever arm type. Coordinate dead stop and/or hold open location with concealed floor closers. Rixson Checkmate products provide hold open and/or dead stop.
Features:
- Single-acting doors
- Non-handed
- Slide track design
- Recommended for medium traffic, medium-weight doors
- The degree of opening is fully adjustable and can be adapted to changing needs
- Heavy shock absorber spring provides compression before the dead stop
- Can be ordered specifically as a stop, friction stay or hold open
- Complete screw packet with thru-bolts for the door, wood, and machine screws for the frame
- Torx ® screws are optional for security applications, but heavy-duty units should be considered for high-security applications
- Standard architectural finishes
- Durable slider cam and shock block
- 110 ° maximum opening
- 3/4" square channel
- For pull, side mounting, or flush and rabbeted mounting on the push side use angle jamb bracket adapter 5258
Specifications
Application: | Surface Mount - Interior - Medium Traffic Doors |
Butts Offset Pivots: | 30-1/16 - 36 |
Center Hung Pivots: | 32-1/16 - 38 |
Weight: | 3.5 lbs |
Warranty: | 2 Years Limited Warranty |
Manufacturer: | Rixson |
Certifications
ANSI: | 156.8, Grade 1 and 2, C05512 |
UL: | UL/ULC Listed |
