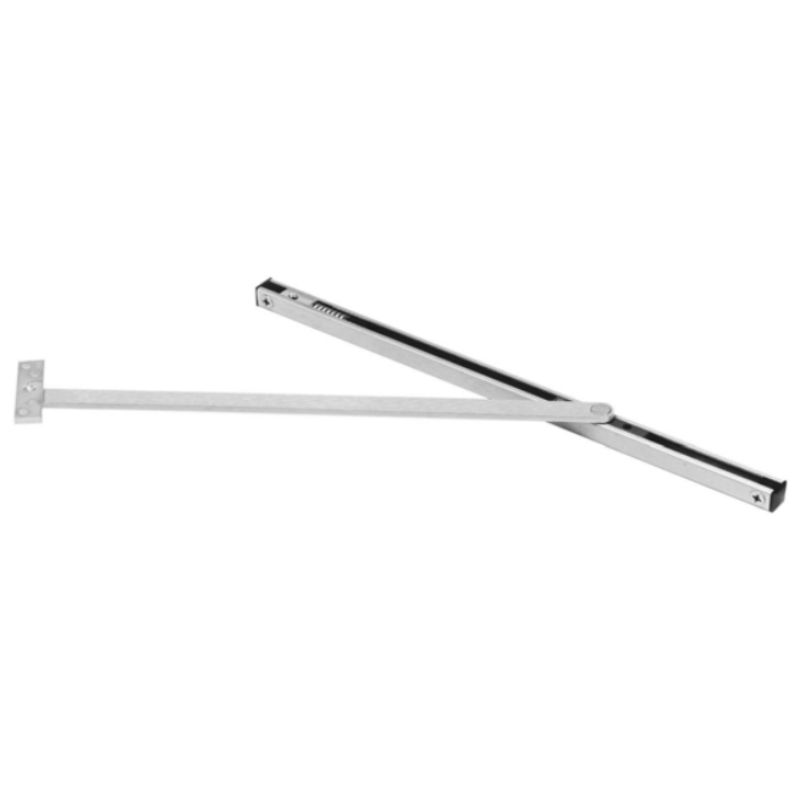

Rixson 10-346-630 Overhead Door Stop Surface Mounted, Multi Function, Dr Width Use Butts or Pivots, Standard Duty, Adjustable, 30 1/6-30 Inch, Max 110 Degrees, 1-3/4 Inch Thick Dr, Non Handed, US32D Satin Stainless Steel Finish

Application

• Interior or exterior doors
• Doors are single acting
• Non-handed
• Recommended for high traffic, heavy abuse installations


Features

• Standard duty, adjustable
• Slide track design
• Degree of opening fully adjustable and can be adapted to changing needs
• Heavy shock absorber spring provides compression before deadstop
• Can be ordered specifically as a stop, friction stay, or hold open.
• Multi-function unit is shipped as a stop. Can be converted to a hold open or friction in field. 5012- PKG (Adapter kit) included
• Complete screw packet with thru-bolts for door, wood and machine screws for frame
• Torx® screws optional for security applications, but heavy-duty units should be considered for high-security applications
• Durable slider cam and shock block
• 110° maximum opening
• 3/4" square channel
• For pull side mounting or flush and rabbeted mounting on push side use angle jamb bracket adapter 5258


Compliance

• ANSI/BHMA A156.8, Grade 1 Certified (
  Stop Models)
• Stop function UL listed for fire door assemblies
