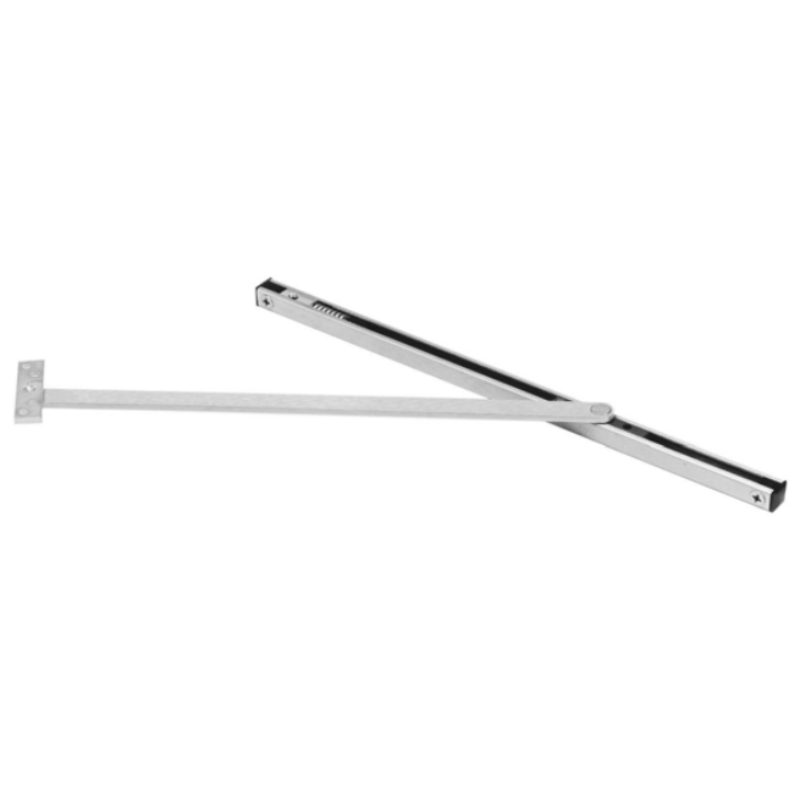

Rixson 10-436-630 Overhead Door Stop Surface Mounted, Dr Width Use Butts or Pivots, Standard Duty, Adjustable, 36 1/6-42 Inch, Max 110 Degrees, 1-3/4 Inch Thick Door, Non Handed, US32D Satin Stainless Steel Finish
This Rixson overhead door stop delivers reliable performance for standard-duty applications. Featuring surface-mounted installation, it accommodates doors 36 1/6 to 42 inches wide and works seamlessly with butt or pivot hinges. The adjustable design allows opening angles up to 110 degrees, while the non-handed configuration suits any door orientation. Built for 1-3/4 inch thick doors, this unit combines durability with precision engineering. The satin stainless steel finish resists corrosion and maintains a professional appearance in high-traffic environments. An essential component for controlled door operation and safety.
Application
- Interior or exterior doors
- Doors are single acting
- Non-handed
- Recommended for high traffic, heavy abuse installations
Features
- Standard duty, adjustable
- Slide track design
- Degree of opening fully adjustable and can be adapted to changing needs
- Heavy shock absorber spring provides compression before deadstop
- Can be ordered specifically as a stop, friction stay, or hold open.
- Multi-function unit is shipped as a stop. Can be converted to a hold open or friction in field. 5012- PKG (Adapter kit) included
- Complete screw packet with thru-bolts for door, wood and machine screws for frame
- Torx® screws optional for security applications, but heavy-duty units should be considered for high-security applications
- Durable slider cam and shock block
- 110° maximum opening
- 3/4" square channel
- For pull side mounting or flush and rabbeted mounting on push side use angle jamb bracket adapter 5258
Compliance
- ANSI/BHMA A156.8, Grade 1 Certified (
Stop Models)
- Stop function UL listed for fire door assemblies
