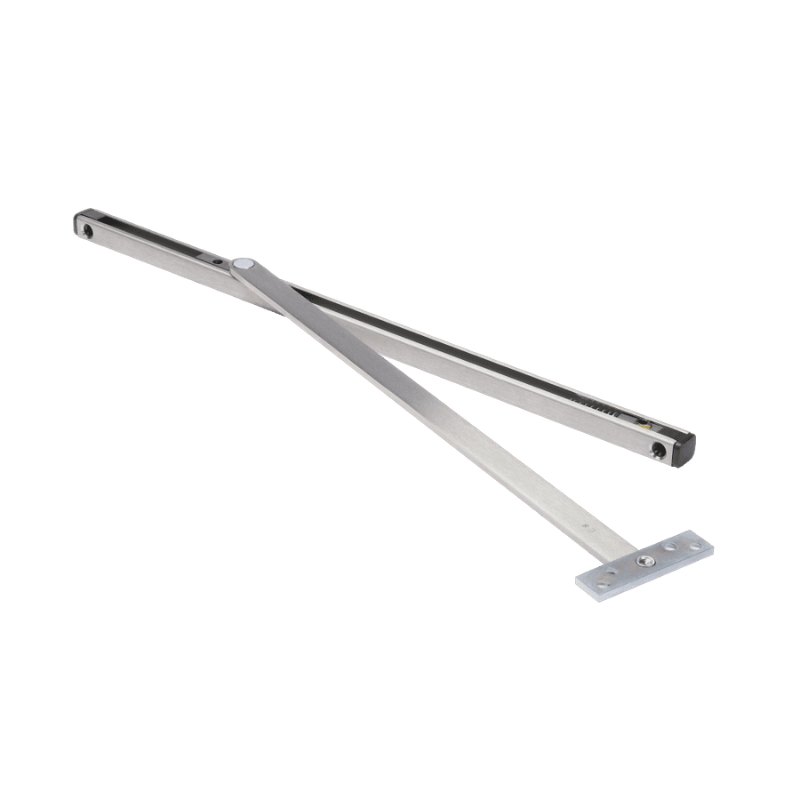

Rixson 10-446-630 Overhead Door Stop Surface Mounted, Multi Function, Dr Width Use Butts or Pivots, 36 1/6-42 Inch, Max 110 Deg, 1-3/4 Inch Tk Dr, Non Handed, US32D Satin Stainless Steel Finish

The Rixson 10-446-630 is a surface-mounted overhead door stop built for reliable control of heavy commercial doors. Designed for door widths from 36 1/16 to 42 inches and 1-3/4 inch thick doors, this multi-function unit holds and stops the door at any point up to a maximum opening of 110 degrees. It works with either butt hinges or pivots and is non-handed, making installation straightforward for a wide range of openings. Finished in US32D (630) satin stainless steel, it offers durable corrosion resistance and a clean appearance that blends with modern commercial hardware. It's a dependable choice for high-traffic entry and interior doors.

Features

• Surface-mounted design for simplified installation without mortising the door or frame.
• Multi-function operation provides both hold-open and positive stop control.
• Compatible with doors hung on either butt hinges or pivots.
• Sized for door widths of 36 1/16 to 42 inches and 1-3/4 inch thick doors.
• Non-handed construction fits left- and right-hand openings.
• US32D satin stainless steel finish resists wear and corrosion.

Functional Details

The multi-function overhead stop combines a positive stop with adjustable hold-open, allowing the door to be arrested at the desired position while protecting the door and adjacent walls from over-swing damage. Maximum opening is limited to 110 degrees.

• Surface applied overhead door stop and holder.
• For use on doors hung on butts or pivots.
• Adjustable hold-open.
• Maximum opening angle 110°.

Arm Type Details

This model uses a surface-mounted overhead arm and track assembly that guides the door through its swing and engages the stop and hold-open mechanism at the set opening angle, controlling door movement at the top of the door.

Included Components

Supplied as a complete surface-mounted overhead stop assembly including the arm, track, and mounting hardware in a US32D satin stainless steel finish.
