Description

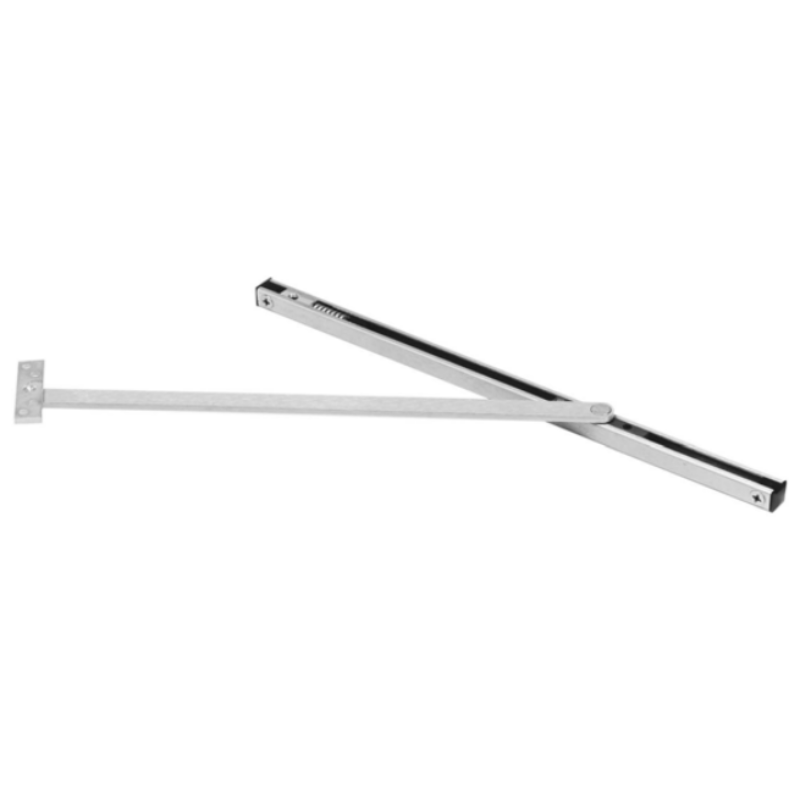

Rixson 10-536-630 Overhead Door Stop Surface Mounted, Dr Width Use Butts or Pivots, Standard Duty, Adjustable, 42 1/6-48 Inch, Max 110 Degrees, 1-3/4 Inch Thick Door, Non Handed, 42-1/16" - 48" Door Width for Butt Offset Pivots, 45-1/16" - 48" Door Width for Center Hung Pivots, US32D Satin Stainless Steel Finish
The Rixson 10-536-630 overhead door stop is purpose-built for extra-large commercial door openings requiring robust hold-open performance. This surface-mounted unit accommodates butt hinges, offset pivots, and center-hung pivot systems with door openings spanning 42-1/16" to 48" depending on hinge type. Engineered for standard-duty applications, it provides adjustable operation to 110 degrees and is compatible with 1-3/4" thick doors. The satin stainless steel construction delivers exceptional corrosion resistance in high-traffic commercial environments, while its non-handed configuration streamlines installation across varied architectural requirements. An ideal solution for facilities with oversized openings demanding reliable, long-lasting door control.
Application
-
Interior or exterior doors
-
Doors are single acting
-
Non-handed
-
Recommended for high traffic, heavy abuse installations
Features
-
Standard duty, adjustable
- 42-1/16" - 48" Door Width for Butt Offset Pivots, 45-1/16" - 48" Door Width for Center Hung Pivots
-
Slide track design
-
Degree of opening fully adjustable and can be adapted to changing needs
-
Heavy shock absorber spring provides compression before deadstop
-
Can be ordered specifically as a stop, friction stay, or hold open.
-
Multi-function unit is shipped as a stop. Can be converted to a hold open or friction in field. 5012- PKG (Adapter kit) included
-
Complete screw packet with thru-bolts for door, wood and machine screws for frame
-
Torx® screws optional for security applications, but heavy-duty units should be considered for high-security applications
-
Durable slider cam and shock block
-
110° maximum opening
-
3/4" square channel
-
For pull side mounting or flush and rabbeted mounting on push side use angle jamb bracket adapter 5258
Compliance
-
ANSI/BHMA A156.8, Grade 1 Certified (
Stop Models)
-
Stop function UL listed for fire door assemblies
Door Opening Chart
| Butt Offset Pivots | Center Hung Pivots | Friction | H.O. | Stop | Multi |
| 18 - 24 | 21 - 26-1/2 | 10-116 | 10-126 | 10-136 | 10-146 |
| 24-1/16 - 30 | 26-9/16 - 32 | 10-216 | 10-226 | 10-236 | 10-246 |
| 30-1/16 - 36 | 32-1/16 - 38 | 10-316 | 10-326 | 10-336 | 10-346 |
| 36-1/16 - 42 | 38-1/16 - 45 | 10-416 | 10-426 | 10-436 | 10-446 |
| 42-1/16 - 48 | 45-1/16 - 48 | 10-516 | 10-526 | 10-536 | 10-546 |
Product Specs
| Manufacturer | Rixson |
| SKU | 10-536-630 |
| Origin | USA |
| Unit of Measure | Each |
| Base Material | Stainless Steel |
| Limited Warranty | 2 Year |
