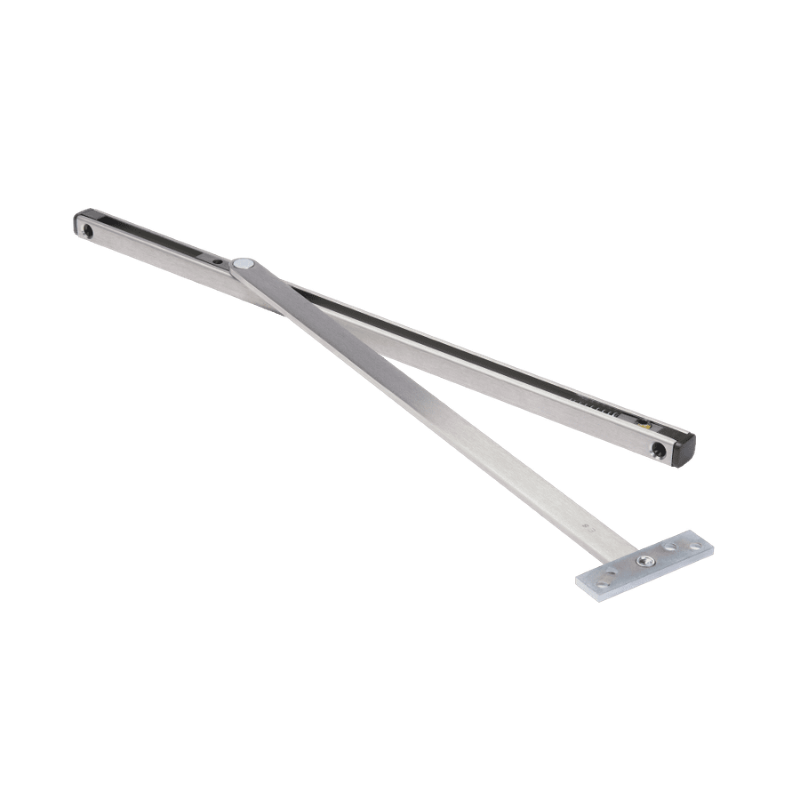

Rixson 10-546-630 Overhead Door Stop Surface Mounted, Multi Function, Dr Width Use Butts or Pivots, 42 1/6-48 Inch, Max 110 Deg, 1-3/4 Inch Tk Dr, Non Handed, US32D Satin Stainless Steel Finish

The Rixson 10-546-630 is a heavy-duty surface-mounted overhead door stop built to control and protect swinging doors in demanding commercial settings. Designed for doors measuring 42-1/16 to 48 inches wide, it delivers a maximum opening of 110 degrees and works with either butt hinges or pivots. This non-handed, multi-function unit fits 1-3/4 inch thick doors and carries a durable US32D (630) satin stainless steel finish for lasting corrosion resistance and a clean appearance. Its surface installation simplifies mounting while providing reliable hold-open and positive stop performance where door and wall protection matter most.

Features

• Surface-mounted design for straightforward installation on the door and frame.
• Multi-function operation combines controlled stop and hold-open capability.
• Non-handed construction allows use on both left- and right-hand doors.
• Sized for doors 42-1/16 to 48 inches wide with a 1-3/4 inch thickness.
• Compatible with either butt hinges or pivots for flexible applications.
• Finished in US32D satin stainless steel for durability and a professional look.

Functional Details

The 10-546 is a multi-function overhead stop, providing a positive dead stop at the selected maximum opening while offering hold-open functionality to keep the door in place when needed. The mechanism absorbs and limits door swing to protect adjacent walls, hardware, and the door itself.

• Multi function.
• Maximum door opening 110 degrees.
• For use with butts or pivots.

Arm Type Details

This model uses a surface-mounted overhead arm and slide channel that engages at the preset stop point. The arm controls the door's outward travel and provides the hold-open action, transferring stopping force through the track for smooth, consistent operation.
