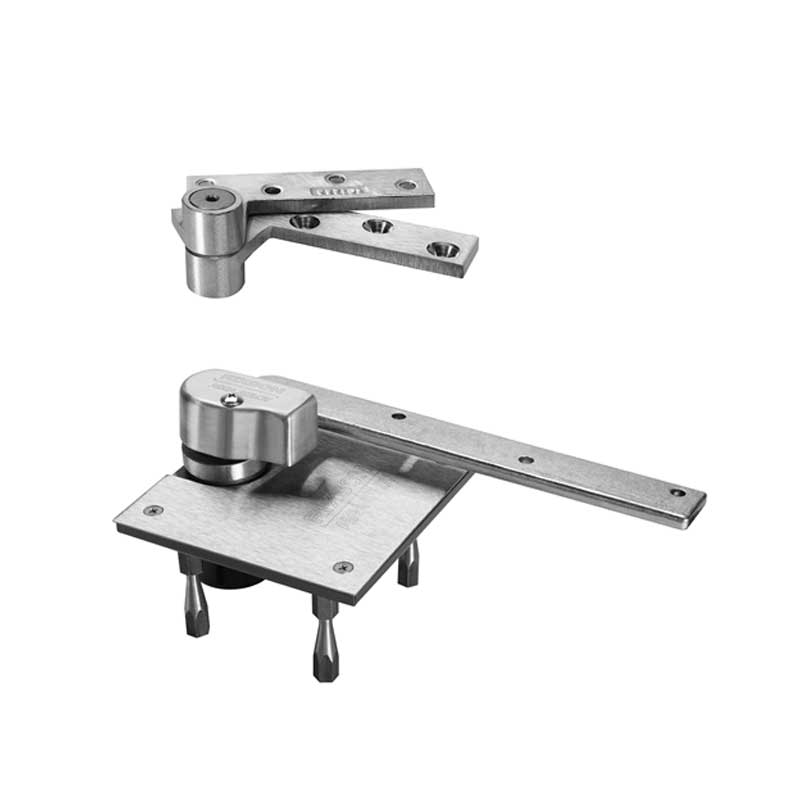

Rixson 117-1/2 LH 626 Pivot Set
Rixson 117-1/2 Tech Info
All RIXSON Products

Rixson 117 1/2, Satin Chrome, Pivot Set Heavy Weight For Doors Up Tp 650 LBS, Includes Top and Bottom Pivot set, Handed

  • SKU: 11712RH626
$1,143.00/ea
Available (3‑4 Weeks)
3-4 Weeks Lead Time
Rixson Handing: RH Right Hand

Rixson 117 1/2 - 626 Satin Chrome (US26D)Pivot Set Heavy Weight For Doors Up Tp 650 LBS, Handed, Includes Top and Bottom Pivot Set.

Application:

  • Exterior or Interior Doors
  • Weight to 650 lbs.*
  • Door Width up to 4'0" (1219mm)
  • Handed
  • Heavy Weight Pivot Set

* Door size & weight guidelines are determined using the appropriate number of intermediate pivots
Description/Features:
  • Standard top pivot 180 included
  • M19 intermediate pivot required (order separately)
  • Bottom pivot mortised into floor
  • Available for fire door assemblies up to three hours (ferrous material) – specify F117-1/2. Intermediate pivot required by UL. Specify FM19 (order separately)
  • For 20-minute label suffix “–20” to the part number
  • Non-ferrous base material
  • Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot
  • 3/4" (19mm) offset (measured from the centerline of pivot to face of door)
  • Available for 1-1/2" (38mm) offset (door weight 350 lbs.) for doors with cladding or frame molding
  • Door edges must be beveled 1/8" in 2"
  • Furnished with wood and machine screws
  • Extended spindles are available in 1/2" (13mm) increments up to 2" (51mm) longer than standard
  • Doors will swing 180°, trim permitting
Product Cut Sheet
