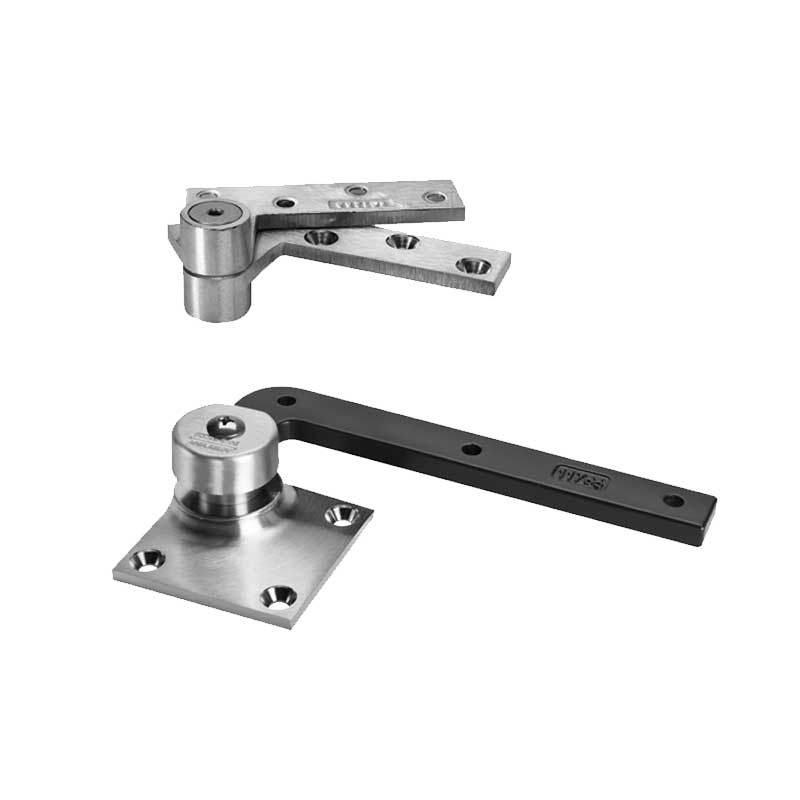

Rixson 117 Pivot Set, 3/4 Inch Offset, Includes Top & Bottom Pivot, Bottom Pivot Floor Mounted, Doors Weighing Up To 300 LB, Width Up To 42 Inches
The Rixson 117 Pivot Set features a 3/4 inch offset and includes both top and bottom pivots. The bottom pivot is floor mounted and can support doors weighing up to 300 pounds and with a width of up to 42 inches.
Application
- Interior Doors
- Weight to 300 lbs.*
- Door Width up to 3'6" (1067mm)
- Handed
- Light-Duty/Light Weight Pivot Set
* Door size & weight guidelines are determined using the appropriate number of intermediate pivots
- Standard top pivot 180 included
- 119 intermediate pivots recommended (order separately)
- Bottom pivot mortised into floor
- Available for fire door assemblies up to three hours – specify F117. Intermediate pivot required by UL. Specify FM19, (order separately)
- For the 20-minute label suffix “–20” to the part number
- Non-ferrous base material
- Doors up to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot
- 3/4" (19mm) offset (measured from the centerline of the pivot to the face of the door)
- Available for 1-1/2" (38mm) offset (door weight 150 lbs) for doors with cladding or frame molding.
- Door edges must be beveled 1/8" in 2"
- Furnished with wood and machine screws
- Extended spindles are available in 1/2" (13mm increments up to 2" (51mm) longer than standard
- Doors will swing 180°, trim permitting
