Description

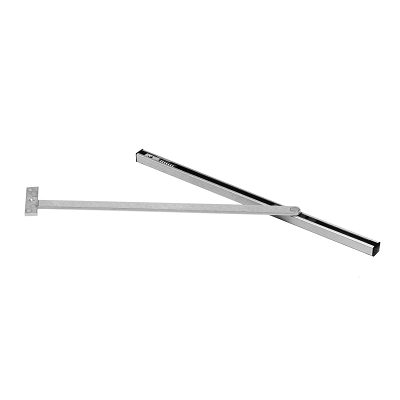

Rixson 2-336-630 Concealed Overhead Door Stop, For Moderate Traffic, Medium Weight Doors, Single Or Double Acting Doors, Max 110 Deg, 1 3/4 Tk Dr, Non Handed, US32D-630 Stainless Steel Finish
Features:
- Doors may be single or double-acting
- Non-handed
- Slide track design
- Recommended for medium traffic, medium-weight doors
- Heavy shock absorber spring provides 5 -7 ° compression before a dead stop
- The degree of the opening is fully adjustable and can be adapted to changing needs
- Complete screw packet for installation in wood and machine screws for door and frame
- For security areas, Torx screws available for exposed fasteners
- Standard architectural finishes
- Durable slider cam and shock block
- 110 ° maximum opening
- 3/4" square channel
Specifications
Application: | Concealed Mount - Interior - Medium Traffic Doors |
Butts Offset Pivots: | 30-1/16 - 36 |
Center Hung Pivots: | 32-1/16 - 38-1/2 |
Weight: | 3.5 lbs |
Warranty: | 2 Years Limited Warranty |
Manufacturer: | Rixson |
Certifications
ANSI: | 156.8, Grade 1 and 2, C04542 |
UL: | UL/ULC Listed |
