Description

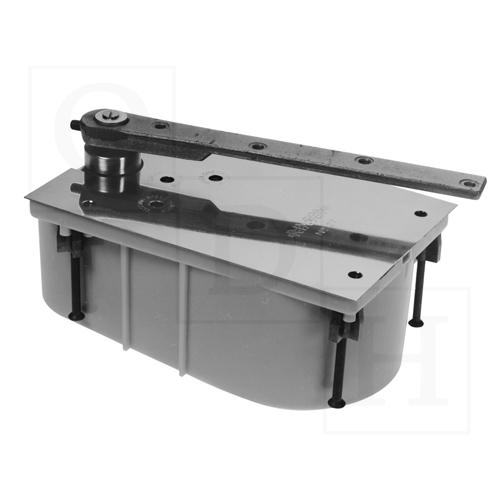

Rixson 28 LAP (Less All Parts) Single-Acting Center Hung Floor Closer Body Only, Handed - Weight Up To 350 lbs
Features:
- Centering arm with adjustment screws in faces of the door
- A built-in positive dead stop prevents the door from swinging beyond the desired opening
- Separate and independent valves for closing speed, latch speed, and backcheck
- Available non-hold open (N) or selective hold open (S) at the same degree as dead stop
- Delayed action option
- Models available to meet ICC/ANSI A117.1 low opening force requirements
- Cold weather fluid option
- Sealed closer option
- Available with floor plate or threshold installation
- Cycolac, rustproof cement case
- Arm reinforcement bracket for wood doors
- Standard top pivot: #340 included
- Not allowed for fire-rated doors
- Frame stop required on the header at the lock side. If not supplied by frame manufacturer, recommend the use of 60131
- Furnished with wood and machine screws
- Extended spindles available in 1/2" increments up to 2" longer than standard
Specifications:
| Application: | Single Acting, Exterior or Interior Doors |
| Handing: | Left-hand (LH) & Right-hand (RH) |
| Door Width: | Up to 4'0" |
| Door Height: | Up to 8'6" |
| Weight: | Up to 350 lbs |
| Warranty: | 10 Years Limited Warranty |
| Manufacturer: | Rixson |
Certifications:
| ANSI: | 156.4 C06021 |
Document Center
Floor Closer Handing
