Description

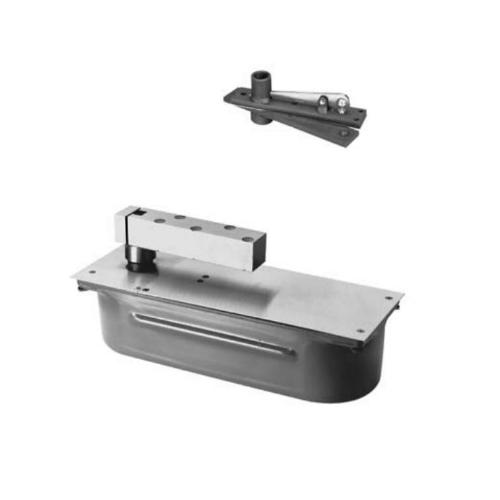

Rixson 30 LAP (Less All Parts) Double-Acting, Non-Handed, Center Hung Floor Closer Body Only - Weight Up To 200 lbs.
Features Rixson 30 LAP (Less All Parts) Double-Acting Center Hung Floor Closer Body Only
- Centering arm with adjustment screws in faces of the door (critical for double acting doors)
- Adjustable closing speed valves for each direction of the door swing
- Mechanism returns the door to the center
- Available non-hold open (N) or automatic hold open (A) at 90 ° (requires 93 ° swing) or 100 ° (requires 103 ° swing)
- Not available in Delayed Action (DA)
- Maximum door opening 103 °
- Auxiliary door stop required, overhead or floor type
- Models available to meet ICC/ANSI A117.1 low opening force requirements (consult factory)
- Cold weather fluid option
- Sealed closer option
- Available with floor plate or threshold installation
- Steel cement case
- Arm reinforcement bracket for wood doors
- Standard top pivot: #340 included
- Not allowed for fire-rated doors
- Furnished with wood and machine screws
- Extended spindles available in 1/2" increments up to 2" longer than standard
Specifications:
| Application: | Double Acting, Exterior or Interior Doors |
| Handing: | Non-Handed |
| Door Width: | Up to 4'0" |
| Door Height: | Up to 8'6" |
| Weight: | Up to 200 lbs |
| Warranty: | 10 Years Limited Warranty |
| Manufacturer: | Rixson |
Certifications:
| ANSI: | 156.4 C6012 |
