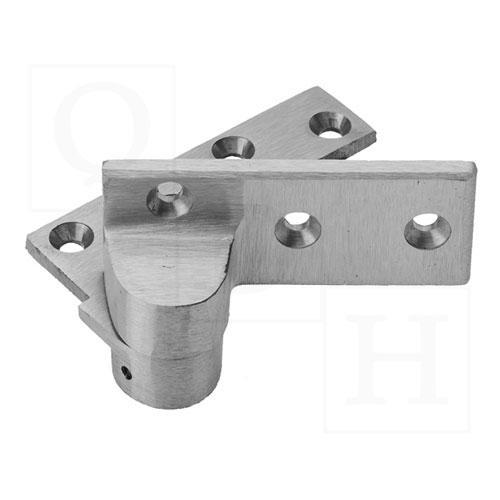

Rixson 380 626 Half Mortise Offset Top Pivot, Handed, 626-US26D Brushed Chrome Finish
Features:
- Flush door and frame application only
- Optional top pivot where door portion cannot be mortised
- Designed for channel iron door frames with aluminum, hollow metal, or wood doors
- Available for fire door assemblies (ferrous material)
- Door portion from L180 pivot is available if lead-lined doors are used specify L380 and door thickness
- Non-ferrous base material
- 3/4" (19mm) offset (measured from the centerline of pivot to face of door)
- Furnished with wood and machine screws
- Available with longer than standard pivot pins. Increments are 1/4" (6mm), 1/2" (13mm), 3/4" (19mm) only
Specifications:
| Application: | Half Mortise |
| Offset: | 3/4" (19mm) offset (measured from the centerline of pivot to face of door) |
| Door Width: | Up to 3'6" (1067mm) |
| Handing: | Left-hand (LH) & Right-hand (RH) |
| Material: | Non-ferrous base |
| Warranty: | 2 years limited warranty |
Certifications:
| BHMA/ANSI NO: | C07511 |
