Rixson 4090A Heavy Duty Double Acting Center Hung Floor Closer, Hold Open, Double Acting

The Rixson 4090A is a heavy duty center hung floor closer engineered for double acting doors in demanding commercial and institutional settings. Fully concealed in the floor, it delivers smooth, controlled operation while supporting doors up to 300 lbs and openings up to 3'6" wide. The 4090A includes a built-in hold open function, allowing the door to stay open at a set position when needed. Its double acting design lets the door swing in both directions, making it ideal for high-traffic entrances, lobbies, and interior passages where reliable, long-term performance and a clean, unobtrusive appearance are essential.

Features

• Concealed floor-mounted design keeps hardware hidden for a clean, finished look.
• Double acting operation allows the door to swing in both directions.
• Built-in hold open function keeps the door open at a preset position.
• Center hung mounting supports heavy commercial doors with balanced control.
• Heavy duty construction rated for high-traffic applications.
• Independent adjustment of closing and latching speeds for precise control.

Functional Details

The 4090A operates as a double acting center hung closer with a hold open feature. The door can be swung in either direction and held open at a designated position, releasing back to closed when moved manually.

• Double acting
• Hold open
• Center hung
• Adjustable closing and latching speed

Included Components

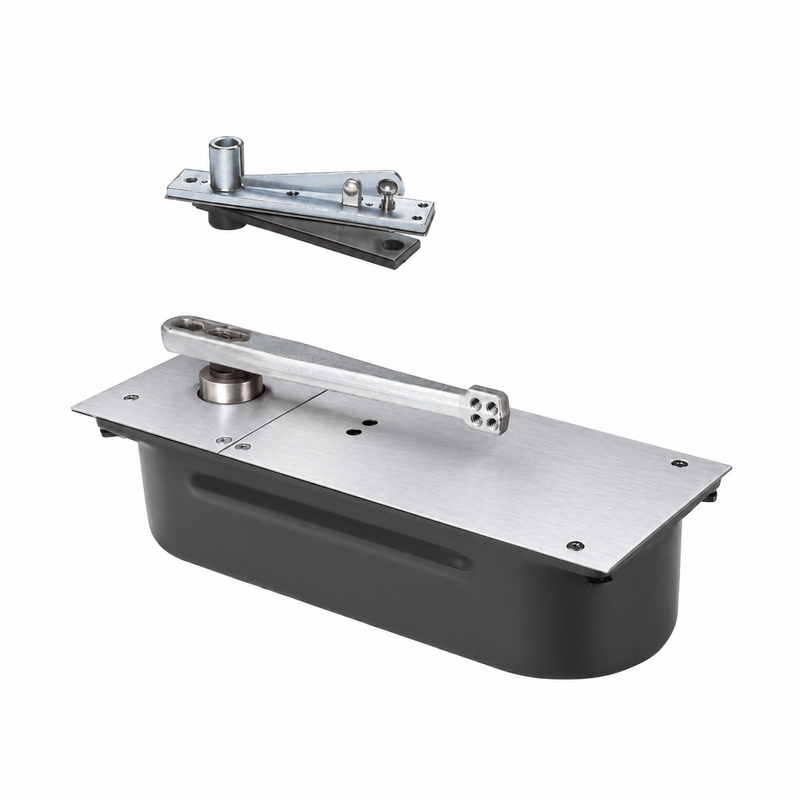

The 4090A ships as a complete floor closer assembly with the cement case, closer body, and cover plate required for center hung installation. Top pivot and related mounting hardware are selected to match the specific door and frame configuration.
