Description

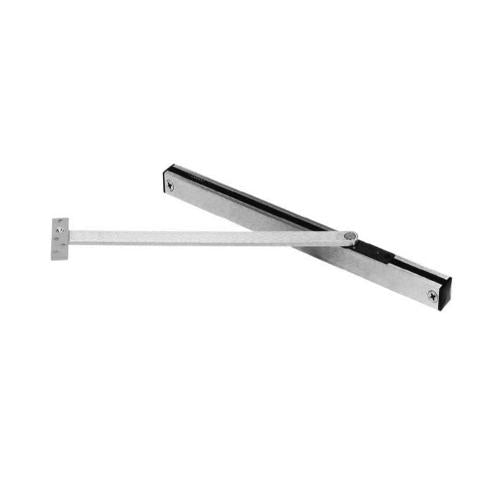

Rixson 9-326-630 OverHead Surface Mounted Heavy Duty Stop With Hold Open, Dr Width Use Butts and Pivots 33-1/16-38 In, For 1 3/4 Tk Dr, 110 Deg Max, Non Handed, US32D-630 Satin Stainless Steel Finish
Rixson Checkmate 9-326 Heavy-Duty Surface Mounted Hold Open
- Doors are single acting
- Non-handed
- Slide track design
- Recommended for high traffic, heavy abuse installations
- Heavy shock absorber spring provides 5-7 ° compression before the dead stop
- LS option omits spring for special application
- On/off knob
- Complete screw packet with thru-bolts for the door, wood, and machine screws for frame
- Torx ® screws optional for security applications
- Standard architectural finishes
- 110 ° maximum opening
- 1-3/4" minimum door thickness
- 1-3/16" square channel
- Durable slider cam and shock block
- For flush mounting on the push side of the door use angle jamb bracket adapter 5458 LH 5459RH
- Rixson 9-326 Overhead Door Stops
Specifications
| Application: | Surface Mount - Interior or Exterior - High Traffic Doors |
| Butts Offset Pivots: | 33-1/16 - 38 |
| Center Hung Pivots: | 36-1/16 - 41 |
| Weight: | 4.5 lbs |
| Warranty: | 2 Years Limited Warranty |
| Manufacturer: | Rixson |
Certifications:
| ANSI: | 156.8, Grade 1 and 2, C02511 |
| UL: | UL/ULC Listed |
