Description

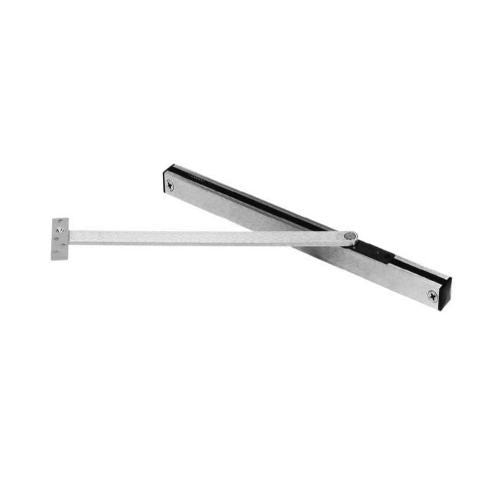

Rixson 9-336-630 OverHead Surface Mounted Heavy Duty Stop, Dr Width Use Butts and Pivots 33-1/16-38 In, For 1 3/4 Tk Dr, 110 Deg Max, Non Handed, US32D-630 Satin Stainless Steel Finish
Features
Rixson Checkmate 9-336 Heavy-Duty Surface Mounted Stop- Doors are single acting
- Non-handed
- Slide track design
- Recommended for high traffic, heavy abuse installations
- Heavy shock absorber spring provides 5-7 ° compression before the dead stop
- LS option omits spring for special application
- Complete screw packet with thru-bolts for the door, wood, and machine screws for frame
- Torx ® screws optional for security applications
- Standard architectural finishes
- Stop function UL listed for fire door assemblies
- 110 ° maximum opening
- 1-3/4" minimum door thickness
- 1-3/16" square channel
- Durable slider cam and shock block
- For flush mounting on the push side of the door use angle jamb bracket adapter 5458 LH 5459RH
Specifications For
Application: | Surface Mount - Interior or Exterior - High Traffic Doors |
Butts Offset Pivots: | 33-1/16 - 38 |
Center Hung Pivots: | 36-1/16 - 41 |
Weight: | 4.5 lbs |
Warranty: | 2 Years Limited Warranty |
Manufacturer: | Rixson |
Certifications
ANSI: | 156.8, Grade 1 and 2, C02541 |
UL: | UL/ULC Listed |
