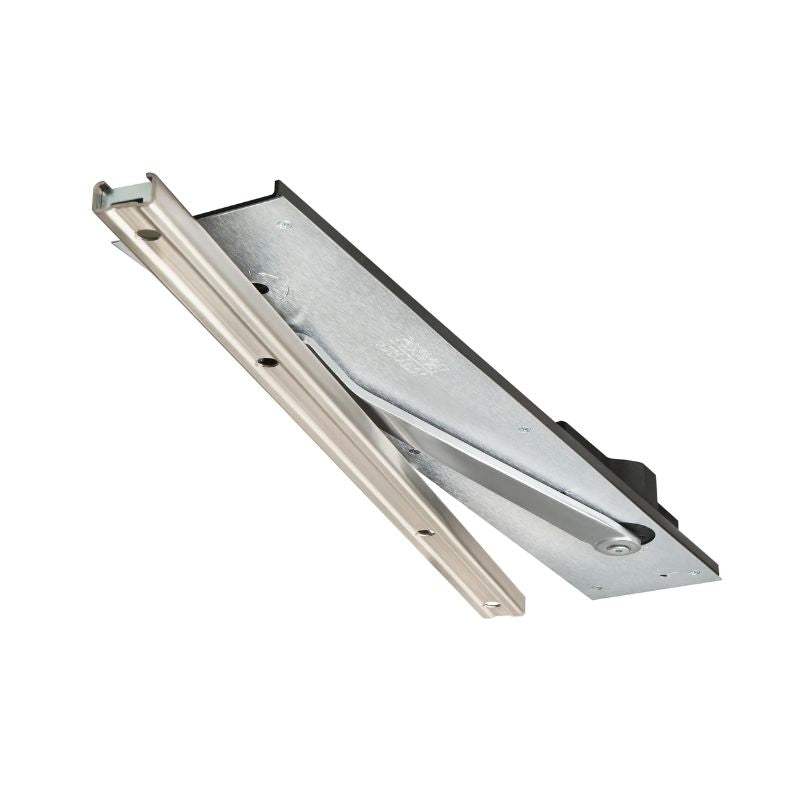

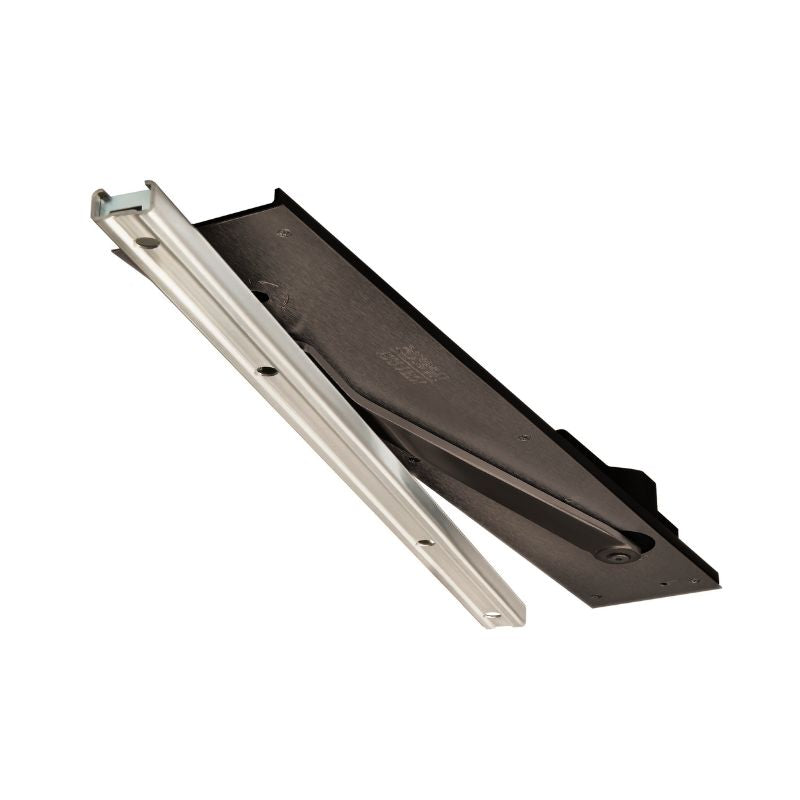

Rixson 91H Overhead Concealed Closer, Single Acting, Offset Architectural Grade, Hold Open, Door Weight up to 250 lbs. Includes Dress Cover Plate, Grade 1

The Rixson 91H Overhead Concealed Closer is a single-acting, architectural-grade solution built for demanding commercial openings that require reliable control and a clean, unobtrusive appearance. Designed for offset-hung doors weighing up to 250 lbs., this closer mounts within the door frame header to keep hardware out of sight while delivering consistent, dependable operation. The built-in hold-open feature lets the door stay open at a set position, making it ideal for high-traffic entrances and accessibility needs. Meeting Grade 1 standards and supplied with a dress cover plate for a finished look, the 91H combines heavy-duty performance with the durability expected in institutional and commercial environments.

Features

• Overhead concealed design keeps the closer hidden within the frame header for a clean architectural look.
• Single-acting operation suited for offset-hung door applications.
• Hold-open function allows the door to remain open at a selected position.
• Architectural Grade 1 construction for heavy-duty commercial use.
• Handles door weights up to 250 lbs.
• Includes a dress cover plate for a finished installation.

Functional Details

The hold-open version of the 91 series lets the door be held open at a preset point and released with a manual push, providing convenient hands-free access while maintaining controlled closing when disengaged.

• Single acting
• Offset hung
• Hold open
• Concealed in head frame

Arm Type Details

The 91H uses an offset-hung arm configuration in which the closer body is concealed within the head frame and connects to an offset pivot arrangement. This setup supports single-direction swing while keeping mechanical components out of view.

Included Components

This closer ships with a dress cover plate to conceal the mounting channel and provide a clean, finished appearance after installation.
