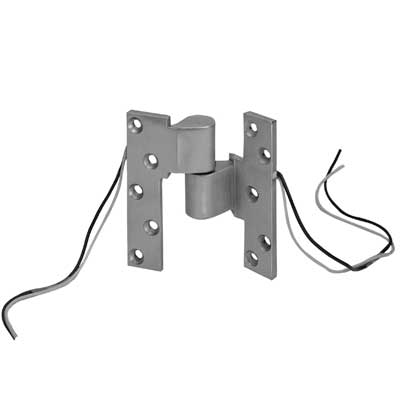

Rixson E-M19U-8 Electrified Intermediate Pivot, 8 wire Power transfer, Handed, Satin Chrome

Rixson E-M19U-8 Electrified Intermediate Pivot, 8 wire Power transfer, Handed, 626 - Satin Chrome (US26D)

Application

• Offset Hung
• Electric Pivot for Power Transfer
• Handed
• For Electrified Panic Devices with Large Inrush Current

Description/Features

• Not load-bearing
• Always use M19 intermediate pivot to install the door
• The door and jamb portions are factory assembled and cannot be separated
• Junction boxes are supplied with pivots
• Two each 18 gauge wires. Each wire is rated at 2 amps continuously. UL is listed for 24-volt, Class I wiring
• ElectroLynx® option not available
• Not available in ferrous material
• 3/4" (19mm) offset
• Door edges must be beveled in 1/8" in 2"
• Furnished with wood and machine screws
