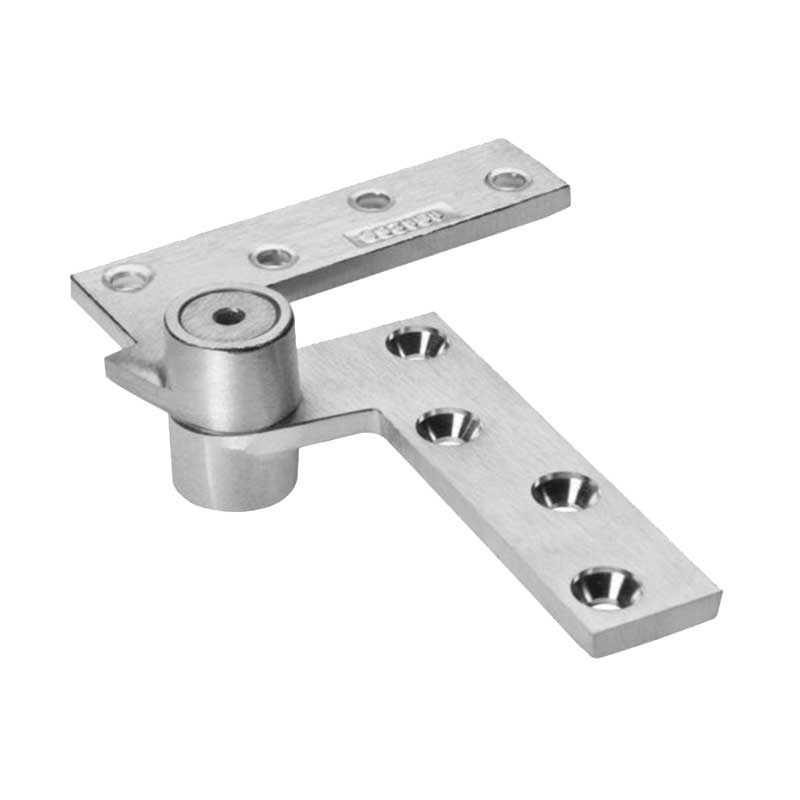

Rixson F180 Offset Top Pivot Only Fire Rated, Full Mortise, Non Handed

Rixson F180 Offset Top Pivot Only Fire Rated, Full Mortise, Non-Handed

Features:

• Standard Rixson top pivot for most offset pivot sets and floor closers
• Oil-impregnated sintered bronze bushing
• Ferrous base material
• Fire-rated for fire door assemblies (ferrous material)
• 3/4" (19mm) offset (measured from the centerline of pivot to face of door)
• Available for 1-1/2" (38mm) offset
• Furnished with wood and machine screws
• Available with longer than standard pivot pins. Increments are 1/4" (6mm), 1/2" (13mm), 3/4" (19mm) only
• For extra wide or high traffic prefix "H". - H pivots have heavy-duty needle bearings. - H Pivots available in 1-1/2" (38mm) offset
