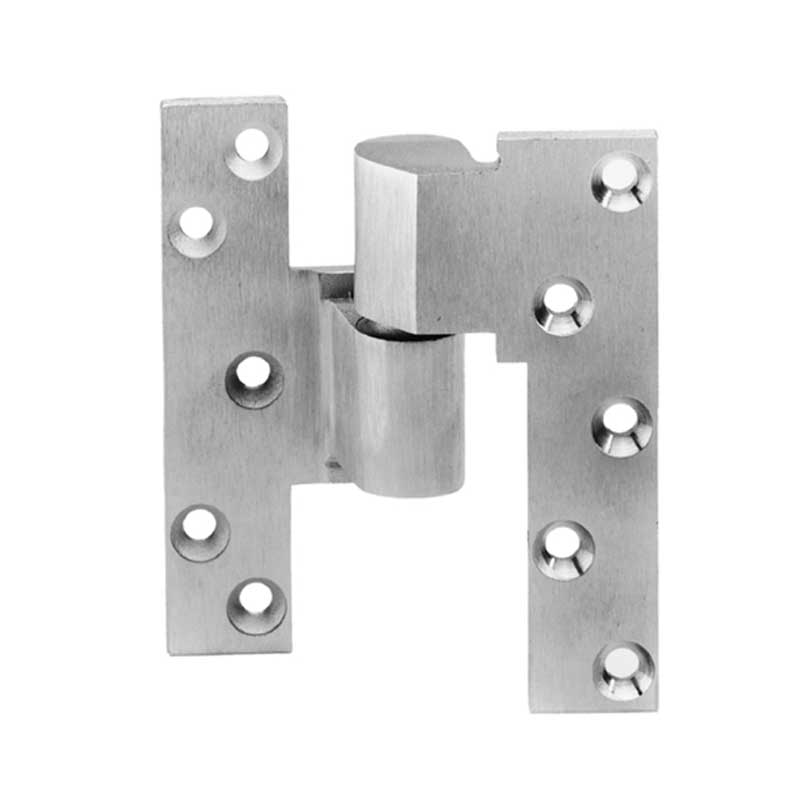

Rixson FM19 Fire Rated 3/4" Offset Intermediate Door Pivot

The Rixson FM19 is a fire-rated intermediate door pivot featuring a 3/4" offset, engineered for standard-duty use. Its full mortise design ensures seamless installation and stability, while the handed configuration provides precise alignment and smooth operation. Built to meet stringent fire safety standards, this pivot enhances the durability and safety of commercial door systems without compromising performance. Ideal for applications requiring reliable fire resistance and long-lasting functionality.

Description/Features:

• Full mortise

• Handed

• Not load-bearing

• Maintains door alignment

• Aids in installing floor closers and bottom pivots

• 3/4" (19mm) offset

• Door edges must be beveled in 1/8" in 2"

• Non-ferrous base metal

• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) warrants another intermediate pivot

• Furnished with wood and machine screws

• Available finishes: plated or sprayed finishes (FM19)
