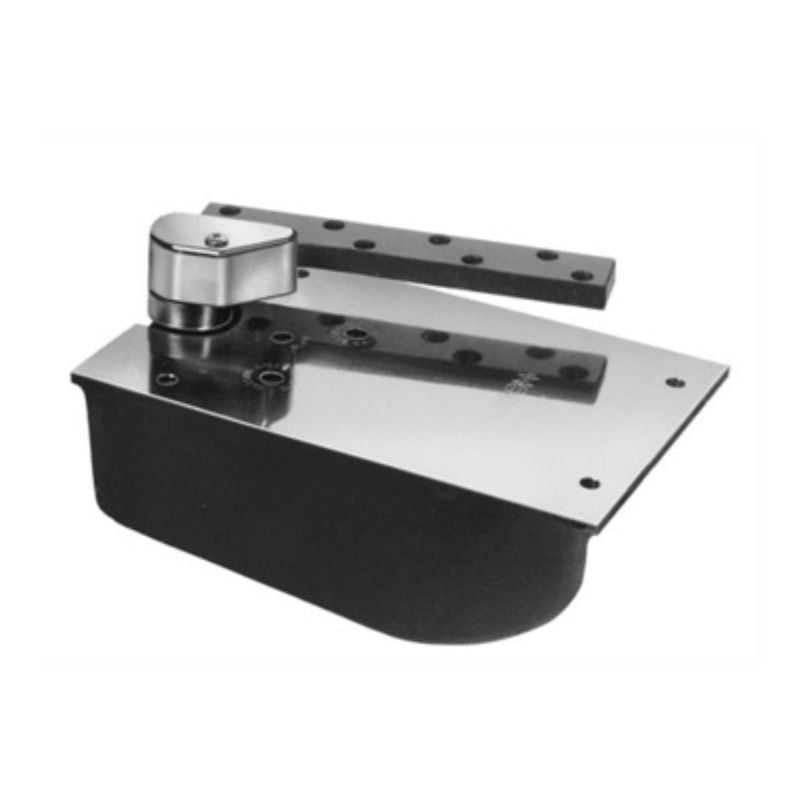

Rixson L27 Single-Acting 3/4" Offset Hung Floor Closer for Lead Lined, Heavy Weight, or High Traffic Doors - Weight Up To 1500 lbs.

  • SKU: L2790SHORH626

Rixson L27 Single-Acting 3/4" Offset Hung Floor Closer for Lead Lined, Heavy Weight, or High Traffic Doors - Weight Up To 1500 lbs.

  • SKU: L2790SHORH626
Sale price$3,824.00/ea
In Stock
In Stock
Rixson Finish: 626, Satin Chrome (US26D)
Rixson Degree Of Swing: 90, 90 Degrees
Rixson Handing: -RH, Right Hand
Visa Mastercard American Express Discover Shop Pay Apple Pay

Rixson L27 Single-Acting 3/4" Offset Hung Floor Closer for Lead Lined, Heavy Weight, or High Traffic Doors - Weight Up To 1500 lbs.

  • Available for the following lead-lined door thicknesses: 1-3/4"(44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (63mm) or 3" (76mm)
  • Additional thrust bearing for greater load capacity
  • A built-in positive dead stop prevents the door from swinging beyond the desired opening degree
  • Separate and independent valves for closing speed, latch speed, and backcheck
  • Available non-hold open (N) or selective hold open (S) at the same degree as dead stop
  • Delayed action option
  • Models available to meet ICC/ANSI A117.1 low opening force requirements
  • Cold weather fluid option
  • Sealed closer option
  • Available with floor plate or threshold installation
  • For extended offsets, consult the factory
  • Cast iron cement case
  • Vertical door adjustment
  • Intermediate pivot(s) required
  • Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) warrants another intermediate pivot
  • For fire-rated openings (up to 3-hour assemblies). This package will be supplied with a steel top pivot (FL180) and non-hold open closer. Note: UL listing for
  • 1-3/4" thick doors only
  • Fire-rated closers cannot have the PH option
  • For 20-minute labeled doors
  • Furnished with wood and machine screws
  • Extended spindles are available in 1/2" increments up to 2" longer than standard

Application:

Exterior or Interior Doors, Lead-Lined/Heavy/High Traffic Doors

Handing:

Left-hand (LH) & Right-hand (RH)

Door Width:

Door Width up to 4'0" (1219mm)

Weight:

Up to 1500 lbs

Warranty:

10 Years Limited Warranty

Manufacturer:

Rixson

ANSI:

156.4 C06071
