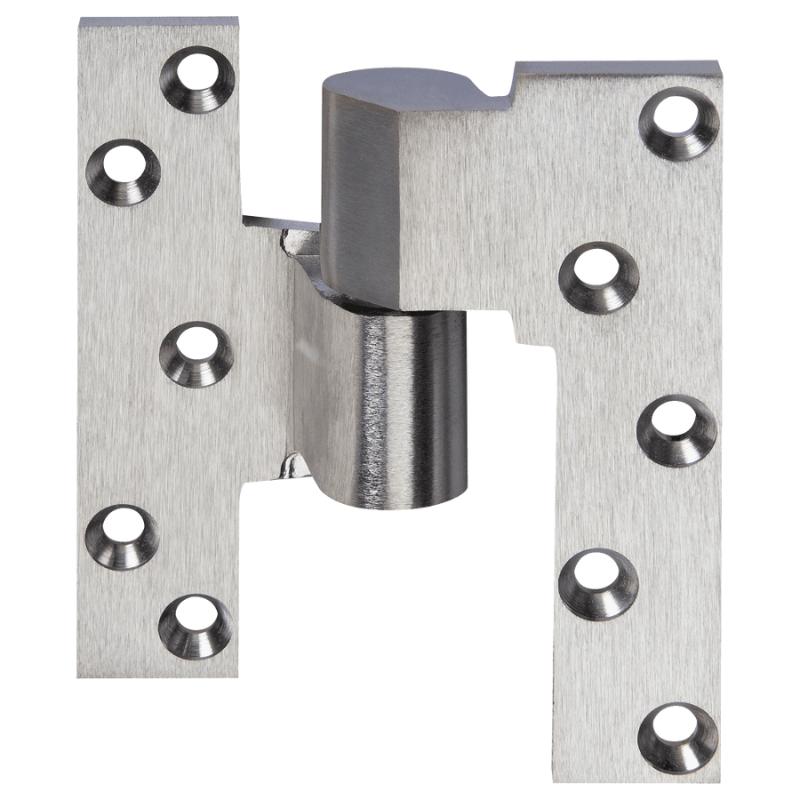

Rixson ML19, 3/4 Offset, Heavy-Duty Intermediate Pivot for Lead Lined Heavy Weight Door, Full Mortise Handed.
Screw holes spaced to straddle lead lining in the center of the door. Also, use on extra heavy or high traffic door
• Load-bearing
• Maintains door alignment
• Aids in installing closers and pivots
• For 20-minute label suffix “–20” to the part number
• Available to accommodate door thicknesses 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), or 3" (76mm) – specify thickness when ordering
• Non-ferrous base material
• Available for fire door assemblies – 1-3/4" (44mm) door only – specify FML19
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) warrants another intermediate pivot
• Door edges must be beveled in 1/8" in 2"
• Furnished with wood and machine screws
