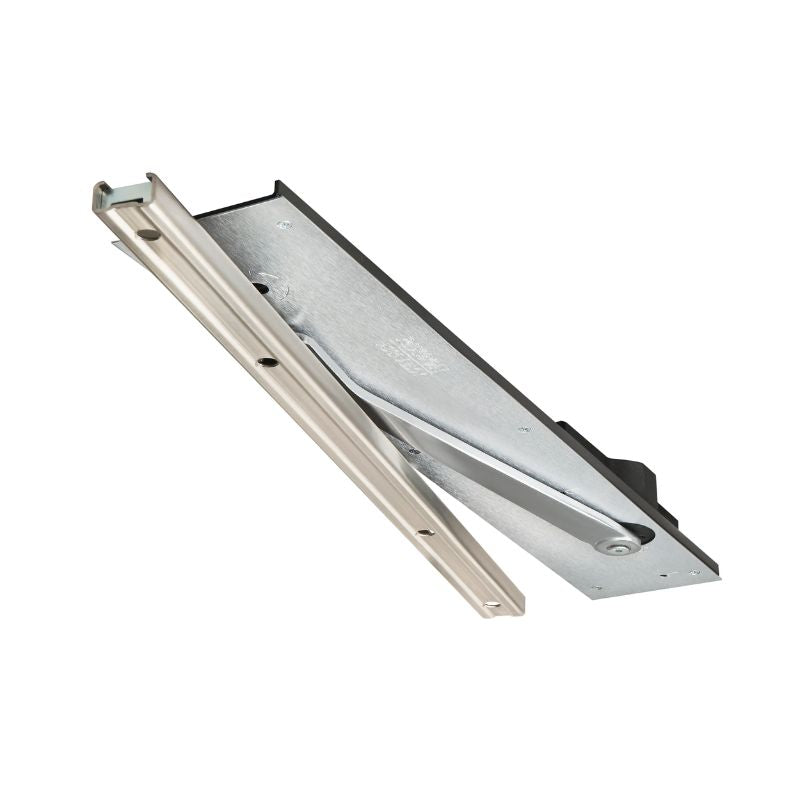

Rixson PH91H Overhead Concealed Closer, Single acting offset Hung, ADA Adjustable, 1-3 Spring,  Hold Open, Dress Cover Plate Included,  Grade 1, 250 LB Limit

The Rixson PH91H Overhead Concealed Closer is engineered for single acting offset hung applications where reliable, controlled door operation is essential. Built to Grade 1 standards, this closer conceals cleanly within the door frame header for a discreet, architecturally pleasing installation. It features an ADA-adjustable design with a size 1 through 3 spring, allowing precise tuning of closing force to meet accessibility requirements. The integrated hold-open function keeps doors open at a set position when needed, while the included dress cover plate provides a finished appearance. Rated to handle doors up to 250 lbs, the PH91H delivers dependable performance for demanding commercial entryways and interior openings.

Features

• Overhead concealed design mounts within the frame header for a clean, hidden appearance.
• Configured for single acting offset hung door applications.
• ADA-adjustable spring power (sizes 1 through 3) for compliant closing force.
• Built-in hold-open function to secure doors in the open position.
• Dress cover plate included for a finished, professional look.
• Grade 1 rated for heavy-duty commercial use.
• Supports doors weighing up to 250 lbs.

Functional Details

The hold-open function allows the door to remain in an open position at a preset point, releasing under manual force to resume controlled closing. Combined with ADA-adjustable spring settings, the PH91H provides smooth, regulated operation for high-traffic openings.

• ADA adjustable spring power sizes 1 through 3.
• Hold open feature.
• Single acting offset hung mounting.
• Dress cover plate included.

Arm Type Details

This closer uses a single acting offset hung arm configuration, meaning the door swings in one direction and is hung on an offset pivot point. This arm type provides consistent control throughout the closing cycle and is well suited to interior and exterior commercial doors requiring concealed hardware.

Included Components

Each unit ships with the overhead concealed closer body, single acting offset hung arm assembly, and a dress cover plate for a completed installation.
