Sargent 10XG70-LMD Fail Safe Cylindrical Electromechanical Lock, LA Keyway, L Rose, MB Lever, Grade 1

SKU: 10XG70LMDUS26D

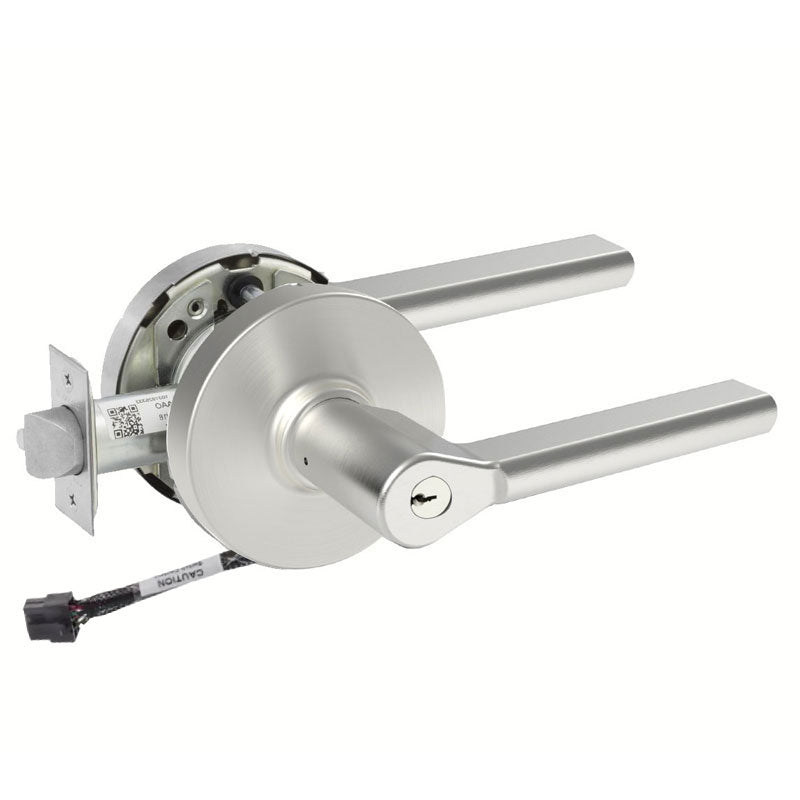

Sargent 10XG70-LMD-US26D Fail Safe Cylindrical Electromechanical Lock

All SARGENT Products

Sargent 10XG70-LMD Fail Safe Cylindrical Electromechanical Lock, LA Keyway, L Rose, MB Lever, Grade 1

SKU: 10XG70LMDUS26D

$1,018.00/ea

Available (2‑3 Weeks)

2-3 Weeks Lead Time

Choose your options

Finish - US26D Satin Chrome (626)

Do you want to customize this product?

[Choose upto 1 values]

Note for our designers

[Maximum 100 character]

Send us a brief of your idea here, we'll contact you after you place your order.

100 Characters remaining

Quantity:

Technical Specs

Function	70 Electromechanical (Fail Safe)
Lever/Knob Design	MD Lever
Rose/Escutcheon Design	L Rose
Cylinder Type	6-Pin Cylinder
Num Pins	6
Hand	Non-handed
Door Thickness	1-3/4" to 2"
Latch Number	Oct-00
Latch Type	Deadlatch
Latch Backset Dim	2-3/4"
Lock Face Size	1-1/8" x 2-1/4"
Bolt Projection	1/2"
Strike Number	808
Strike Type	ANSI Curved Lip Strike
Strike Height	4-7/8"
Strike Width	1-1/4"
Screws	Wood/Machine Screws
Operating Voltage	12 or 24 VAC/DC
Amp Draw	250 mA @ 12VAC/VDC or 150mA @ 24VAC/VDC
Product Type	Electric Cylindrical Lock

Product Specs

Manufacturer	Sargent
SKU	10XG70 LMD
Grade	Grade 1
Installation	Commercial
Origin	United States
Unit of Measure	Each
UL Listing Type	ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Limited Warranty	10 Year Limited Warranty
Fire Rated	3 Hours {A}
Burglar Rated	No

Sargent 10XG70-LMD Cylindrical Electromechanical Lever Lockset, Fail Safe, LA Keyway Keyed Random, [2] Keys, L Rose, MD Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1

The Sargent 10XG70-LMD Cylindrical Electromechanical Lock features a Fail Safe - Power Off Unlocks Lever Function, where the power off unlocks the outside lever. The 10XG70-LMD comes with a standard LA Keyway Cylinder, Keyed Randomly, 2 change keys per lock, an L Rose, MD Lever, 2-3/4" backset, 4-7/8" strike, and comes in 12VDC or 24VDC voltage options. Sargent 10XG70-LMD Locks are field-selectable, fail-safe, and fail-secure.

Sargent 10XG70 Function

Key Features:

70 Function - Fail Safe
2 3/4" Backset
4 7/8" Strike
ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times
UL-cUL listed for 3 hour fire doors and windstorm applications
