Sargent 114P-US26D Hospital Latches for Push-Pull Doors, 5" Backset, With Push/Pull Trim, Satin Chrome Finish

  • SKU: 28114PUS26DLH
Sargent 114P-US26D Hospital Latches
Sargent 114P-US26D Hospital Latches
Sargent 114P-US26D Hospital Latches
All SARGENT Products

Sargent 114P-US26D Hospital Latches for Push-Pull Doors, 5" Backset, With Push/Pull Trim, Satin Chrome Finish

  • SKU: 28114PUS26DLH
$776.00/ea
Available (6‑8 Weeks)
6-8 Weeks Lead Time
  • 34 LA Keyway Rim Cylinder Keyed Different
  • 7034 SFIC (Small Format IC Core) Rim Cylinder - Less Core
  • 6034 LFIC (Large Format IC Core) Rim Cylinder - Less Core
  • 41 LA Keyway Mortise Cylinder Keyed Different
  • 7043 SFIC (Small Format IC Core) Mortise Cylinder - Less Core
  • 6042 LFIC (Large Format IC Core) Mortise Cylinder - Less Core
Strike Option: 28 - 4-7/8 ANSI Curved Lipped Strike
Handing: LH - Left Hand
Luftbild konfigurieren
gedruckt oder als Datei *
privat oder gewerblich *
privat oder gewerblich *
Abmessung *
Abmessung. *
Größe *
Größe. *
Material (180 x 120 cm) *
Material (180x120cm) *
Material (150 x 100 cm) *
Material (150x100cm) *
Material (120 x 80 cm) *
Material (120x80cm) *
Material (105 x 70 cm) *
Material (105x70cm) *
Material (90 x 60 cm) *
Material (90x60cm) *
Material (75 x 50 cm) *
Material (75x50cm) *
Material (60 x 40 cm) *
Material (60x40cm) *
Material (45 x 30 cm) *
Material (45x30cm) *
Material (30 x 20 cm) *
Material (30x20cm) *

Sargent 114P-US26D Hospital Latches for Push-Pull Doors, 5" Backset, With Push/Pull Trim, Satin Chrome Finish

Push/Pull Stamp, Both Paddles are pointed downwards. Available in 2 3/4" or (28) 4 7/8" Strike.

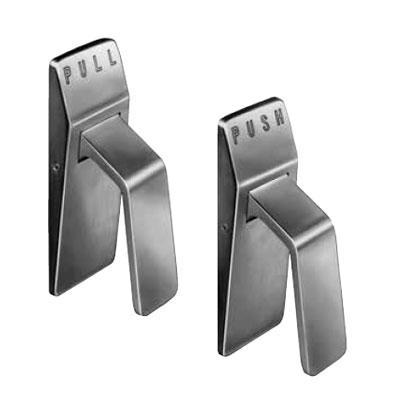

Sargent 114 P Hospital Push and Pull

Designed for convenience and utility, the 114 hospital latches open with a gentle pull or slight push, making them ideal for hands-free operation.

Both the 114 push-pull and 115 push-pull latches with their low profile helps eliminate any obstruction while passing through an opening. Slim tapered paddles and smartly styled escutcheons possess all the elements of tasteful, yet functional design. The chassis design makes this hospital latch constructed for both durability and ease of installation. The 114 Hospital latches are available with 2 3/4" or 4 7/8" strikes, as well as 2 3/4" or 5" backsets, These latches are handed.





Specifications

 For Doors: 1-3/4" (44mm) to 2-1/4" (57mm)
Backset: 5" (127mm) standard
Strike:  2-3/4" (70mm) ANSI A115.2 curved lip strike #800
OR
28- 4-7/8" (124mm) ANSI curved lip strike # 808
Bolt: Brass, 1/2" (13mm) throw
Hand: Specify hand (RHR, RH, LHR or LH)
114: Push/Pull Paddles - both mounted down position only. Cast; Projection from door 3-1/4" (83mm)
Escutcheons: Cold drawn; 2-1/2" (64mm) x 6-7/8" (175mm)
UL Listed: UL Listed for use on fire doors. See Underwriters Laboratories Building Materials List
