What door widths is this exit device compatible with?
The Sargent 12-8504-F-ETL exit device is designed for doors between 33" and 36" wide.
Technical Specs
Physical Appearance
Narrow Stile Pushpad
Device Type
Rim
Device Lenght
36"
Mechanical Function
Exit Only
Trim
ETL
Minimum Stile Size
2"
Door Material
Aluminum
Door Thickness
1-3/4" to 2-1/4"
Door Width
33" to 36"
Cylinder
OPTIONAL
Handed
Yes
Fire Rated
Yes
Product Type
Rim Exit Devices
Product Specs
Vendor
Assa Abloy
Manufacturer
Sargent
Grade
Grade 1
Installation
Commercial
Origin
USA
Unit of Measure
Each
ANSI Number
1
BAA Qualified
Yes
Limited Warranty
5 Years

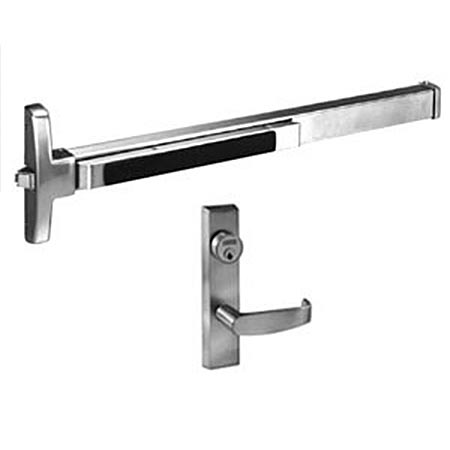

The Sargent 12-8504-F-ETL Narrow Stile Rim Exit Device features a Night Latch Function, Lever Key Retracts Latch Bolt Function, ETL Trim, 33"-36" Bar, Fire Rated, is reversible and comes in a variety of finishes.
8504 ET Trim Functions, 704, 706-8, 710, 713-8, 715-8, 740, 743-8, 744, 746-8, 773-8 & 774-8
