All SARGENT Products

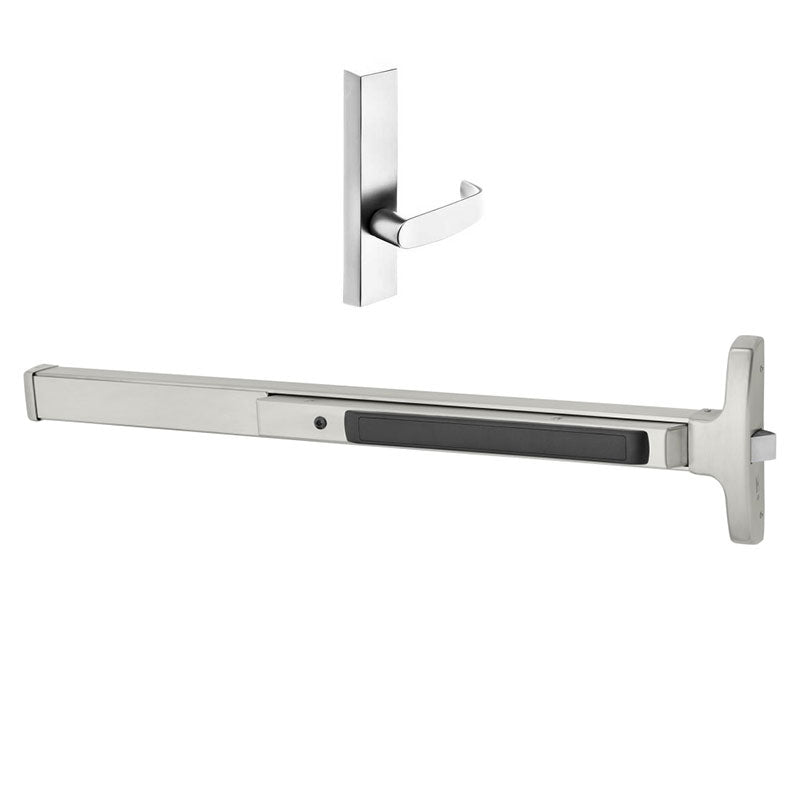

Sargent 12-8515-F-ETL Fire Rated Narrow Stile Rim Exit Device, Passage Function, Non-Keyed, ETL Trim, 33"-36" Bar

  • SKU: 128515FETLUS32DLHR
Sargent 12-8515-ETL
12-8515 ETL Sargent narrow stile exit device US10B/613 Oil rubbed bronze finish
Sargent 12-8515-ETL
12-8515 ETL Sargent narrow stile exit device US10B/613 Oil rubbed bronze finish
All SARGENT Products

Sargent 12-8515-F-ETL Fire Rated Narrow Stile Rim Exit Device, Passage Function, Non-Keyed, ETL Trim, 33"-36" Bar

  • SKU: 128515FETLUS32DLHR
$2,659.00/ea
In Stock
In Stock
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse
Handing Guide:
handing chart image

Sargent 12-8515-ETL is a 33"-36" Fire Rated Narrow Stile Rim Exit Device Lever with Passage Trim Non-Keyed, The 8515 With ETL Lever Trim Is Ideal For Use In Institutions and Commercial Spaces, Healthcare Facilities. The 8515 Is a Narrow Stile Rim Exit Device Handed LHR Or RHR In US32D Satin Stainless Steel Or US10B Oxidized Dull Bronze Finishes.

Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No


Physical Appearance Narrow Stile Pushpad
Device Type Rim
Mechanical Function Lever Classroom
Device Length 36"
Includes Trim Yes, ETL
Minimum Stile Size 2"
Door Material Aluminum
Door Width 33" to 36"
Door Thickness 1-3/4" to 2-1/4"
Fire Rated Yes
Product Type Rim Exit Devices
Product Cut Sheet

Panic Handing Chart
