Technical Specs
Physical Appearance | Narrow Stile Pushpad |
Device Type | Rim |
Mechanical Function | Device to Accept Electrified Trim |
Device Length | 36" |
Includes Trim | Yes |
Trim Type | ETL |
Includes Cylinder(s) | No |
Cylinder Type | Non-Keyed |
Minimum Stile Size | 2" |
Door Material | Wood or Metal |
Door Width | 33" to 36" |
Door Thickness | 1-3/4" - 2-1/4" |
Fire Rated | Yes |
Reversible | Yes |
Product Type | Rim Exit Devices |
Product Specs
Manufacturer | Sargent |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
UL Listing Type | UL10C & UL305 |
ANSI Number | ANSI/BHMA A156.3 |
Restrictions | None |
BAA Qualified | Yes |
Limited Warranty | 5 Years |
Fire Rated | 3 Hours {A} |
Burglar Rated | No |
ADA Compliance | No |

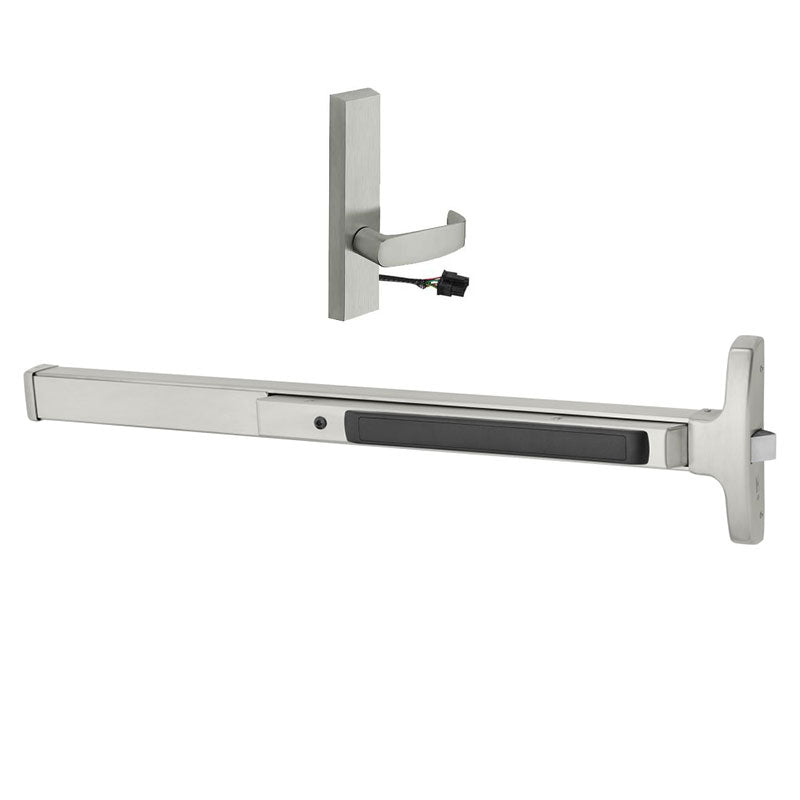

The Sargent 12-8573-F-ETL is a 33"-36" Narrow Stile (12) Fire Rated Rim Exit Device comes Non-Keyed with an Electrified ETL Trim, a Fail-Safe Powers Off Unlocks Lever Function, and comes in US32D or US10B Finishes.
73 Electrified ET Trim - Fail Safe
Power Off, Unlocks Lever (No Cylinder)
8500 Series Narrow Rim Exit Devices
The 8500 Series has a quiet operation with solid security. The single-point rim latching device works nicely to help complete Sargent's full line of exit devices that provide the best combination of durability and innovation.
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix. 1-3/4" (44mm) minimum stile
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
