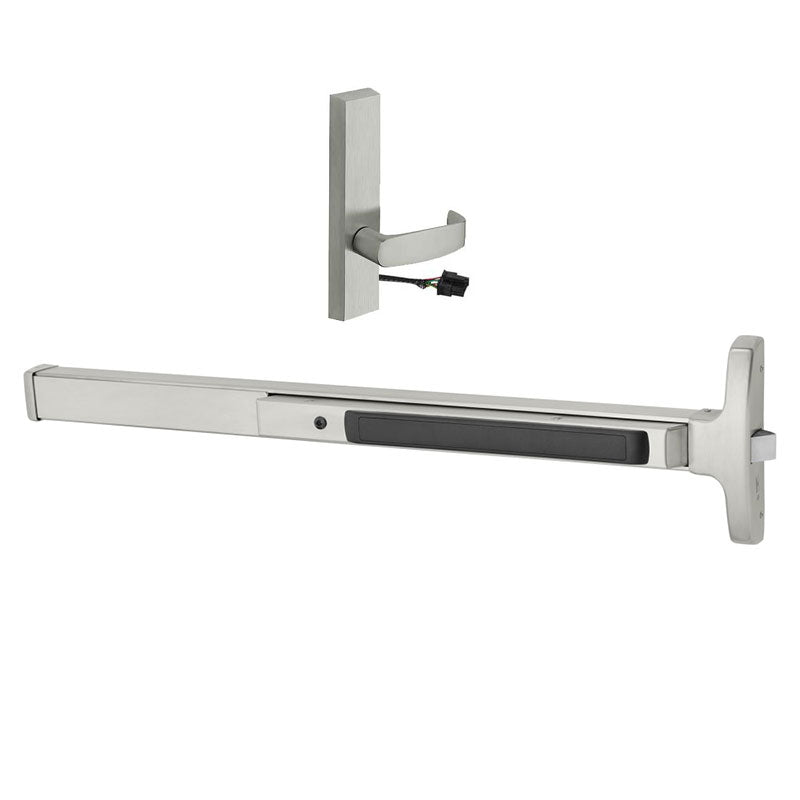

Sargent 12-8573-J-ETL-24V Narrow Stile (12) Fire Rated Rim Exit Device, Electrified ETL Trim, 37"-42" Bar, 24V, Fail Safe Powers Off Unlocks Lever

  • SKU: 128573JETL24VUS32DLHR

Sargent 12-8573-J-ETL-24V Narrow Stile (12) Fire Rated Rim Exit Device, Electrified ETL Trim, 37"-42" Bar, 24V, Fail Safe Powers Off Unlocks Lever

  • SKU: 128573JETL24VUS32DLHR
Sale price$3,055.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse

The Sargent 12-8573-J-ETL is a 37"-42" Narrow Stile (12) Fire Rated Rim Exit Device comes LA Keyway Standard with an Electrified ETL Trim, a Fail-Safe Powers Off Unlocks Lever Function, and comes in US32D or US10B Finishes.

73 Electrified ET Trim - Fail Safe
Power Off, Unlocks Lever (No Cylinder)

8500 Series Narrow Rim Exit Devices

The 12-8573-ETL Narrow Design Rim Exit Device is designed for narrow stile applications and features a rim bolt for quiet operation and security. These devices come in US10B/613 Oil Rubbed Bronze Finish, or US32D/630 Stainless Steel Finish



The 8500 Series has a quiet operation with solid security. The single-point rim latching device works nicely to help complete Sargent's full line of exit devices that provide the best combination of durability and innovation.

  • Door Types: Wood or metal 1 3/4"(44mm) Thick Door; Over 1 3/4" specify thickness and order as a 31- prefix.  1-3/4" (44mm) minimum stile
  • Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door



Manufacturer Sargent
SKU 12-8573J
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance Yes



Physical Appearance Narrow Stile Pushpad
Device Type Rim
Mechanical Function Device to Accept Electrified Trim
Device Length 42"
Hand LHR or RHR
Electric Options Fail Safe
Dogging Options Less Dogging
Includes Trim Yes
Trim Type Lever
Trim Design Non-Keyed Electric Lever
Trim Part No. 773-8 ETL 24V
Includes Cylinder(s) No
Cylinder Type Non-Keyed
Door Material Wood or Metal
Door Width 37" to 42"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated Yes
Reversible Yes
Product Type Rim Exit Devices
