Description

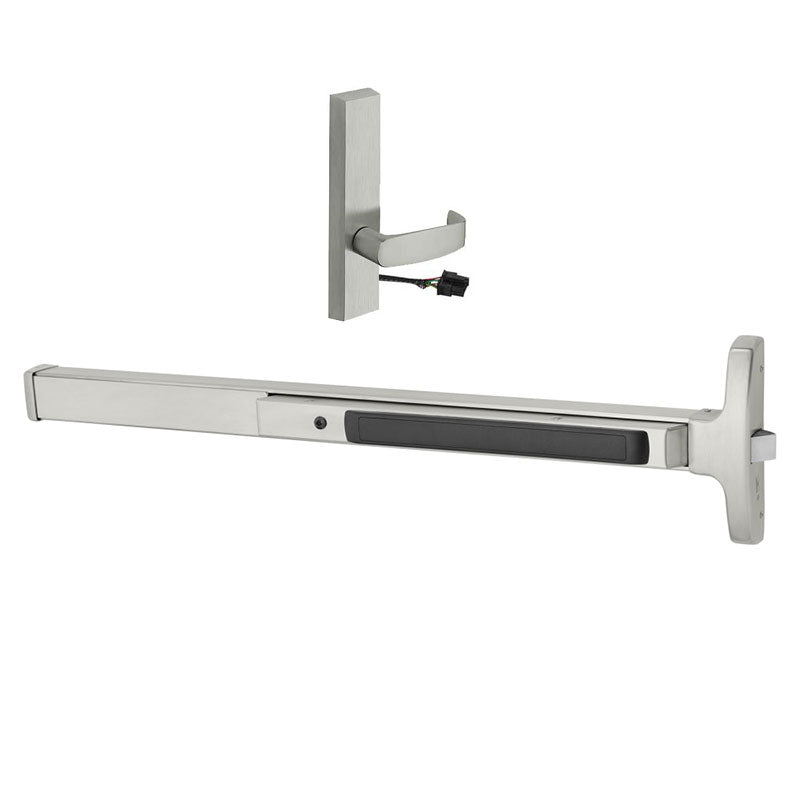

The Sargent 12-8574-F-ETL-24V is a 33"-36" Narrow Stile Rim Exit Device is Electrified, 24 volt, Fire Rated, comes with an ET Trim, Fail Secure Power Off Locks Lever function, and is offered in US32D/630 Stainless Steel or US10B/613 Oil Rubbed Bronze Finishes.
74 Electrified ET Trim - Fail Secure
Power Off, Locks Lever (No Cylinder)
The 8500 Narrow Design Rim Exit Device is designed for narrow stile applications and features a rim bolt for quiet operation and security.
The 8500 Series has a quiet operation with solid security. The single-point rim latching device works nicely to help complete Sargent's full line of exit devices that provide the best combination of durability and innovation.
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix. 1-3/4" (44mm) minimum stile
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Narrow Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Device to Accept Electrified Trim |
| Device Length | 36" |
| Hand | LHR or RHR |
| Electric Options | Fail Secure |
| Dogging Options | Less Dogging |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Non-Keyed Electric Lever |
| Trim Part No. | 774-8 ETL 24V |
| Includes Cylinder(s) | No |
| Cylinder Type | Non-Keyed |
| Door Material | Wood or Metal |
| Door Width | 33" to 36" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | Yes |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
