Technical Specs
| Physical Appearance |
Narrow Stile Pushpad |
| Device Type |
Rim |
| Mechanical Function |
Device to Accept Electrified Trim |
| Device Length |
42" |
| Hand |
LHR or RHR |
| Electric Options |
Fail Secure |
| Dogging Options |
Less Dogging |
| Includes Trim |
Yes |
| Trim Type |
Lever |
| Trim Design |
Non-Keyed Electric Lever |
| Trim Part No. |
774-8 ETL 24V |
| Includes Cylinder(s) |
No |
| Cylinder Type |
Non-Keyed |
| Door Material |
Wood or Metal |
| Door Width |
37" to 42" |
| Door Thickness |
1 3/4" - 2 1/4" |
| Fire Rated |
Yes |
| Reversible |
Yes |
| Product Type |
Rim Exit Devices |
Product Specs
| Manufacturer |
Sargent |
| SKU |
12-8574J |
| Grade |
Grade 1 |
| Installation |
Commercial |
| Origin |
USA |
| Unit of Measure |
Each |
| UL Listing Type |
UL10C & UL305 |
| ANSI Number |
ANSI/BHMA A156.3 |
| Restrictions |
None |
| BAA Qualified |
Yes |
| Limited Warranty |
5 Years |
| Fire Rated |
3 Hours {A} |
| Burglar Rated |
No |
| ADA Compliance |
Yes |

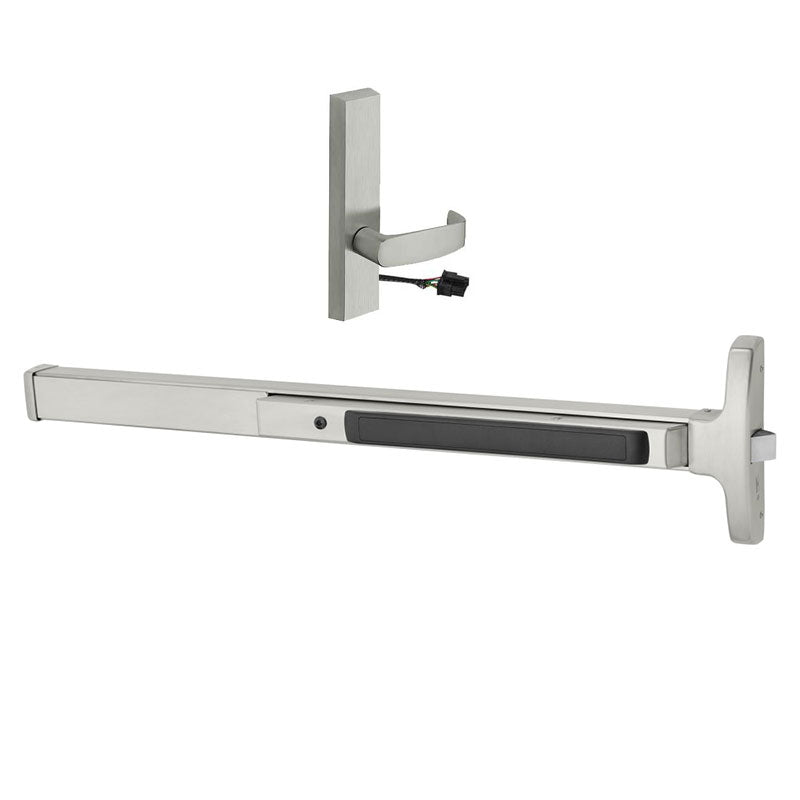

The Sargent 12-8574-J-ETL-24V is a 37"-42" Narrow Stile Rim Exit Device that is Electrified, 24 Volt, Fire Rated, comes with an ET Trim, Fail Secure Power Off Locks Lever function, and is offered in US32D/630 Stainless Steel or US10B/613 Oil Rubbed Bronze Finishes.
74 Electrified ET Trim - Fail Secure
Power Off, Locks Lever (No Cylinder)
The 8500 Narrow Design Rim Exit Device is designed for narrow stile applications and features a rim bolt for quiet operation and security.
The 8500 Series has a quiet operation with solid security. The single-point rim latching device works nicely to help complete Sargent's full line of exit devices that provide the best combination of durability and innovation.
- Door Types: Wood or metal 1 3/4"(44mm) Thick Door; Over 1 3/4" specify thickness and order as a 31- prefix. 1 3/4" (44mm) minimum stile
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
