Sargent 12-8713-E-ETL-96 Fire Rated Surface Vertical Rod Exit Device, ETL Trim, Key Locks Or Unlocks Outside Lever, 96" Dr Height, 24"-32" Dr Widths

SKU: 128713E96ETLUS32DLHR

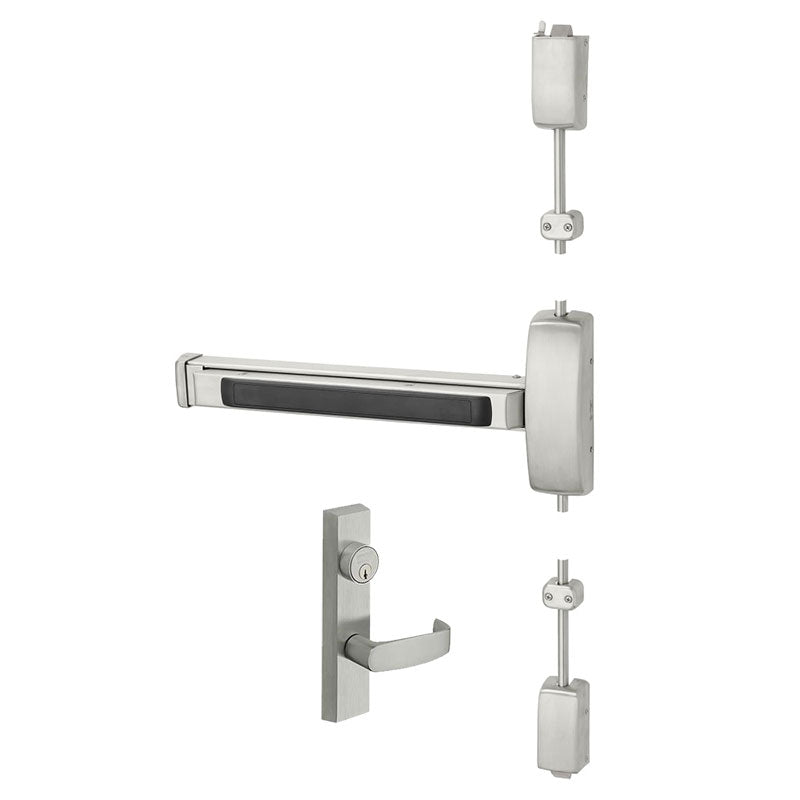

Sargent 12-8713-E-ETL-96-US32D Fire Rated Surface Vertical Rod Exit Device

All SARGENT Products

Sargent 12-8713-E-ETL-96 Fire Rated Surface Vertical Rod Exit Device, ETL Trim, Key Locks Or Unlocks Outside Lever, 96" Dr Height, 24"-32" Dr Widths

SKU: 128713E96ETLUS32DLHR

$3,122.00/ea

Available (3‑4 Weeks)

3-4 Weeks Lead Time

Choose your options

Keyway

Finish - US32D Satin Stainless Steel (630)

Variant

Quantity:

Technical Specs

Physical Appearance	Wide Stile Pushpad
Device Type	Surface Vertical Rod
Mechanical Function	Classroom
Device Length	32"
Hand	LHR or RHR
Dogging Options	Less Dogging
Top Strike	646
Strike Bottom	655
Includes Trim	Yes
Trim Type	Lever
Trim Design	Lever with Escutcheon
Trim Part No.	713-8 ETL
Minimum Stile Size	4 1/2"
Door Material	Metal or Wood
Door Width	24" to 32"
Door Height	96"
Door Thickness	1 3/4" - 2 1/4"
Fire Rated	Yes
Reversible	No
Product Type	Surface Vertical Rod Exit Devices

Product Specs

Manufacturer	Sargent
SKU	12-8713E ETL 96
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL10C & UL305
ANSI Number	ANSI/BHMA A156.3
Restrictions	None
BAA Qualified	Yes
Limited Warranty	5 Years
Fire Rated	3 Hours {A}
Burglar Rated	No
ADA Compliance	Yes

The Sargent 12-8713-E-ETL-96 is a 32" Fire Rated Surface Vertical Rod Exit Device for use with 24" - 32" Wide Doors and 96" Door Heights. The Sargent 12-8713-E-ETL-96 is Less Dogging and comes with an ETL Trim where the Key Locks or Unlocks the Outside Lever.

Sargent 13 Function
Key Outside Unlocks/locks Trim (#41 Cylinder Supplied)

8700 Series Surface Vertical Rod Exit Devices

Has two point latching and is adjustable through the center case.

Part of Sargent's full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.

Door Types: Wood or metal 1 3/4"(44mm) Thick Door; Over 1 3/4" to 2 1/4" specify thickness and order as a 31- prefix. 4 1/2" (114mm) minimum stile with trim and 3 1/2" (44mm) minimum stile without trim
Door Widths:E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

★★★★★

What customers say about Quality Door & Hardware:

"Very happy to know they were able to get me my special order locks so quickly. I will definitely use them for my larger projects."

What door thicknesses does this exit device accommodate?

The device is designed for wood or metal doors that are 1 3/4" (44mm) thick. Doors over 1 3/4" up to 2 1/4" require specifying the thickness when ordering with a "31-" prefix.
