Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Classroom |
| Device Length | 42" |
| Hand | LHR or RHR |
| Dogging Options | Less Dogging |
| Top Strike | 646 |
| Strike Bottom | 655 |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Trim Part No. | 713-8 ETL |
| Minimum Stile Size | 4 1/2" |
| Door Material | Metal or Wood |
| Door Width | 37" to 42" |
| Door Height | 84" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | Yes |
| Reversible | No |
| Product Type | Surface Vertical Rod Exit Devices |
Product Specs
| Manufacturer | Sargent |
| SKU | 12-8713J ETL 84 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | Yes |

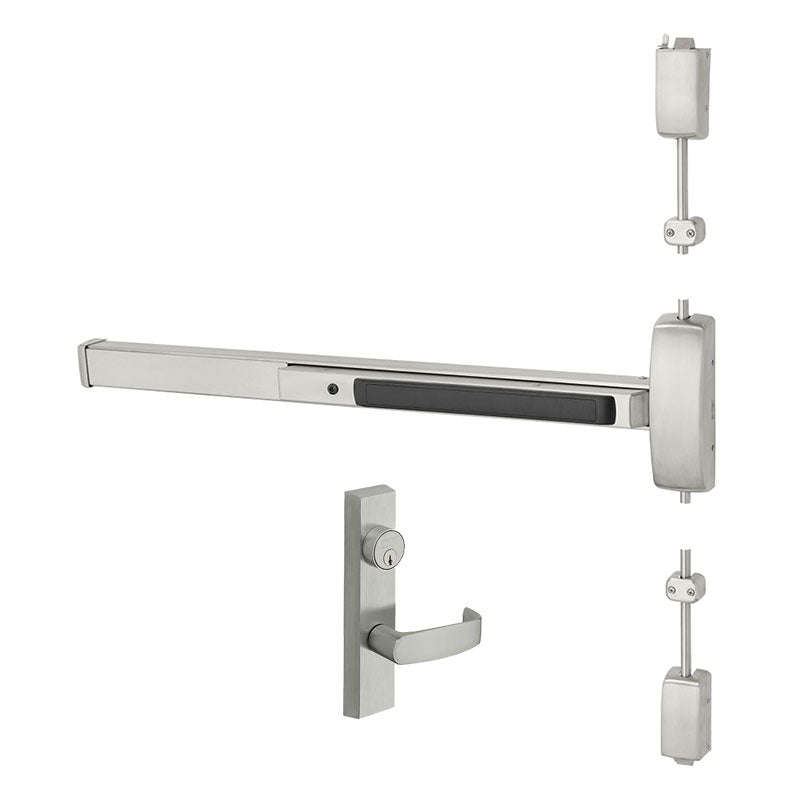

The Sargent 12-8713-J-ETL-84 is a 42" Fire Rated Surface Vertical Rod Exit Device for use with 37" - 42" Wide Doors and 84" Door Heights. The Sargent 12-8713-J-ETL-84 is Less Dogging and comes with an ETL Trim where the Key Locks or Unlocks the Outside Lever.
Sargent 13 Function
Key Outside Unlocks/locks Trim (#41 Cylinder Supplied)
8700 Series Surface Vertical Rod Exit Devices
Has two point latching and is adjustable through the center case.
Part of Sargent's full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.
- Door Types: Wood or metal 1 3/4"(44mm) Thick Door; Over 1 3/4" to 2 1/4" specify thickness and order as a 31- prefix. 4 1/2" (114mm) minimum stile with trim and 3 1/2" (44mm) minimum stile without trim
- Door Widths:E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
AI Recommendations & Insights
★★★★★
What customers say about Quality Door & Hardware:
"Very happy to know they were able to get me my special order locks so quickly. I will definitely use them for my larger projects."
What door thicknesses does this exit device accommodate?
The device is designed for wood or metal doors that are 1 3/4" (44mm) thick. Doors over 1 3/4" up to 2 1/4" require specifying the thickness when ordering with a "31-" prefix.
