Sargent 12-8713-J-ETL-96 Fire Rated Surface Vertical Rod Exit Device, ETL Trim, Key Locks Or Unlocks Outside Lever, 96" Dr Height, 37"-42" Dr Widths

  • SKU: 128713J96ETLUS32DLHR

Sargent 12-8713-J-ETL-96 Fire Rated Surface Vertical Rod Exit Device, ETL Trim, Key Locks Or Unlocks Outside Lever, 96" Dr Height, 37"-42" Dr Widths

  • SKU: 128713J96ETLUS32DLHR
Sale price$3,104.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse
Core Option: KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock

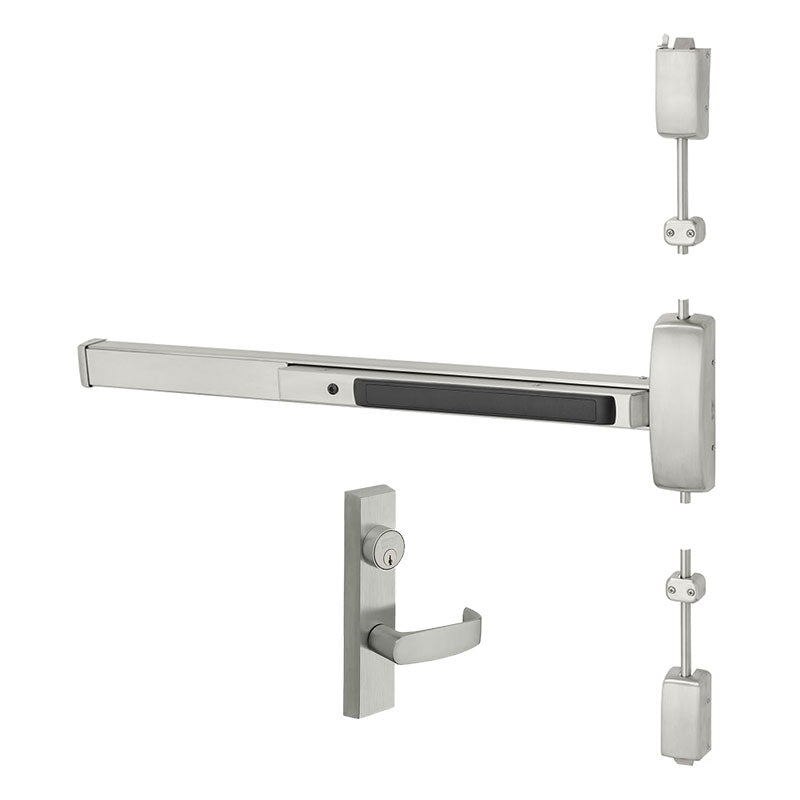

The Sargent 12-8713-J-ETL-96 is a 42" Fire Rated Surface Vertical Rod Exit Device for use with a 37" - 42" Wide Doors and 96" Door Heights. The Sargent 12-8713-J-ETL-96 is Less Dogging and comes with an ETL Trim where the Key Locks or Unlocks the Outside Lever.

Sargent 13 Function
Key Outside Unlocks/locks Trim (#41 Cylinder Supplied)

8700 Series Surface Vertical Rod Exit Devices

Has two point latching and is adjustable through the center case.

Part of Sargent's full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.

  • Door Types: Wood or metal 1 3/4"(44mm) Thick Door; Over 1 3/4" to 2 1/4" specify thickness and order as a 31- prefix.  4 1/2" (114mm) minimum stile with trim and 3 1/2" (44mm) minimum stile without trim
  • Door Widths:E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Manufacturer Sargent
SKU 12-8713J ETL 96
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance Yes


Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Classroom
Device Length 42"
Hand LHR or RHR
Dogging Options Less Dogging
Top Strike 646
Strike Bottom 655
Includes Trim Yes
Trim Type Lever
Trim Design Lever with Escutcheon
Trim Part No. 713-8 ETL
Minimum Stile Size 4 1/2"
Door Material Metal or Wood
Door Width 37" to 42"
Door Height 96"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated Yes
Reversible No
Product Type Surface Vertical Rod Exit Devices

Panic Handing Chart
