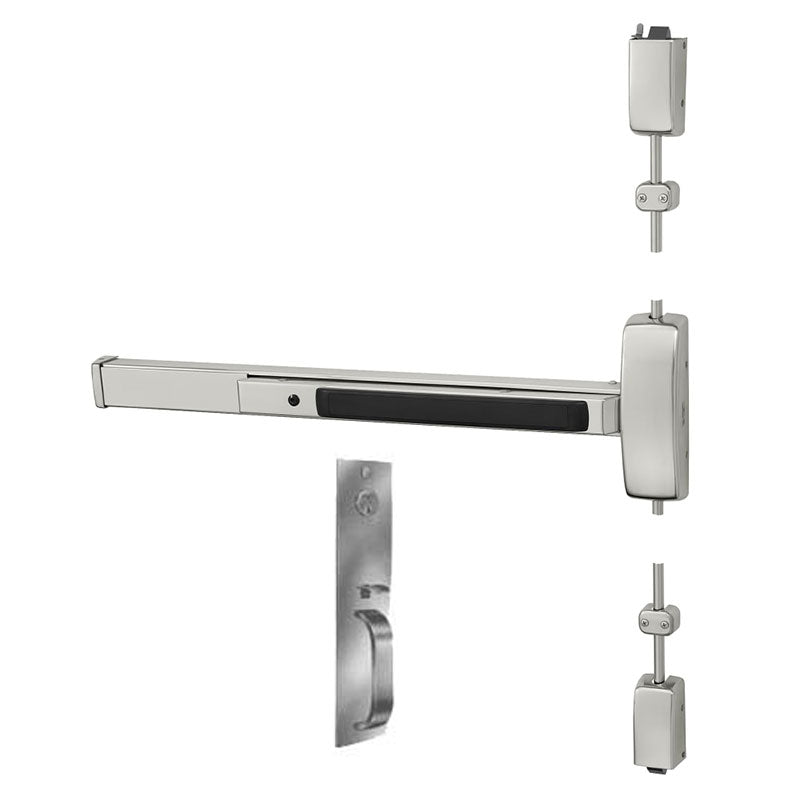

Name: Sargent 12-8763-G-PTB-84 Fire Rated Surface Vertical Rod Exit Device, PTB Trim, Key Locks Or Unlocks Thumb Piece, 84" Dr Height, 43"-48" Dr Widths
Brand: SARGENT
SKU: 128763GPTB84US32DLHR
Price: 2818.00 CAD
Availability: InStock

All SARGENT Products

Sargent 12-8763-G-PTB-84 Fire Rated Surface Vertical Rod Exit Device, PTB Trim, Key Locks Or Unlocks Thumb Piece, 84" Dr Height, 43"-48" Dr Widths

SKU: 128763GPTB84US32DLHR

All SARGENT Products

Technical Specs

Physical Appearance	Wide Stile Pushpad
Device Type	Surface Vertical Rod
Mechanical Function	Classroom
Device Length	48"
Hand	Left Hand Reverse or Right Hand Reverse
Dogging Options	Less Dogging
Top Strike	646
Strike Bottom	655
Includes Trim	No
Trim Type	PTB
Includes Cylinder(s)	Optional
Minimum Stile Size	3 1/2"
Door Material	Metal or Wood
Door Width	43" to 48"
Door Height	84"
Door Thickness	1-3/4" - 2-1/4"
Fire Rated	Yes
Reversible	No
Product Type	Surface Vertical Rod Exit Devices

Product Specs

Manufacturer	Sargent
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL10C & UL305
ANSI Number	ANSI/BHMA A156.3
Restrictions	None
BAA Qualified	Yes
Limited Warranty	5 Years
Fire Rated	3 Hours {A}
Burglar Rated	No
ADA Compliance	No

The Sargent 12-8763-G-PTB-84 is a 48" Fire Rated Surface Vertical Rod Exit Device in Classroom Function for 43" - 48" Door Width, with 84" Door Heights, and features a PTB trim where the Key Locks Or Unlocks with the Thumb Piece.

63 Classroom PTB Trim
Key Outside Unlocks/Locks Thumbpiece

The 12-8763 Is a Commercial Grade One Surface Vertical Rod Panic Device, Two-point latching (top & bottom with adjustability through the center case) Standard bottom latch compatible with latch track thresholds (by others) Single and double door applications. Devices are ANSI A156.3 - Grade 1, Hex key dogging standard on non-fired rated devices; specify 16- for cylinder dogging.
