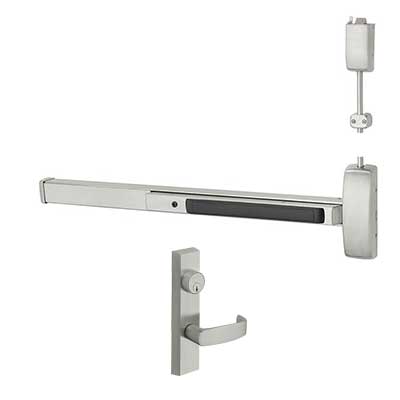

Sargent 12-NB-8713-G-ETL-96 Fire Rated Surface Vertical Rod Exit Device, Less Bottom, ETL Trim, Key Locks Or Unlocks Outside Lever, 96" Dr Height, 43"-48" Dr Widths

  • SKU: 12NB8713GETL96US32DLHR

Sargent 12-NB-8713-G-ETL-96 Fire Rated Surface Vertical Rod Exit Device, Less Bottom, ETL Trim, Key Locks Or Unlocks Outside Lever, 96" Dr Height, 43"-48" Dr Widths

  • SKU: 12NB8713GETL96US32DLHR
Sale price$3,046.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse
Core Option: KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock

The Sargent 12-NB-8713-G-ETL-96 Less Bottom Rod Surface Vertical Rod Exit Device comes with an ETL Trim, is Fire Rated and the Key Locks Or Unlocks the Outside Lever. The 12-NB-8713-G-ETL-96 has a 43"-48" Rail Length and comes in US10B/613 Oil Rubbed Bronze And US32D/630 Satin Stainless Steel Finish

Features:
  • Single point top latching
  • Top latch bolt projection adjustable through center case
  • ANSI/BHMA A156.3 - Grade 1
  • UL10C (Fire) and UL305 (Panic) Listed
  • Tripping potential removed - no bottom strike
  • Rods are 1/2" (13mm) brass, bronze, or stainless steel

NB8700 Series Surface Vertical Rod Exit Devices

The NB8700 Series is a top latch surface vertical rod exit device.

The NB8700 Series is part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics and innovation. This series has both rated and non-rated openings.

  • Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- Prefix; 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
  • Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance Yes

Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Lever Classroom
Device Length 48"
Hand LHR or RHR
Mechanical Options Less Bottom Rod
Top Strike 646
Includes Trim ETL
Minimum Stile Size 4-1/2" with Trim
Door Material Metal or Wood
Door Width 43- 48 In.
Door Height 96 In.
Door Thickness 1 3/4" to 2 1/4"
Fire Rated Yes
Product Type Surface Vertical Rod Exit Devices

Panic Handing Chart
