All SARGENT Products
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Lever Passage |
| Device Length | 48" |
| Hand | Optional |
| Mechanical Options | Less Bottom Rod |
| Top Strike | 646 |
| Includes Trim | No |
| Minimum Stile Size | 4 1/2" with Trim |
| Door Material | Metal or Wood |
| Door Width | 43" - 48" |
| Door Height | 96 In. |
| Door Thickness | 1 3/4" to 2 1/4" |
| Fire Rated | Yes |
| Product Type | Surface Vertical Rod Exit Devices |
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | No |

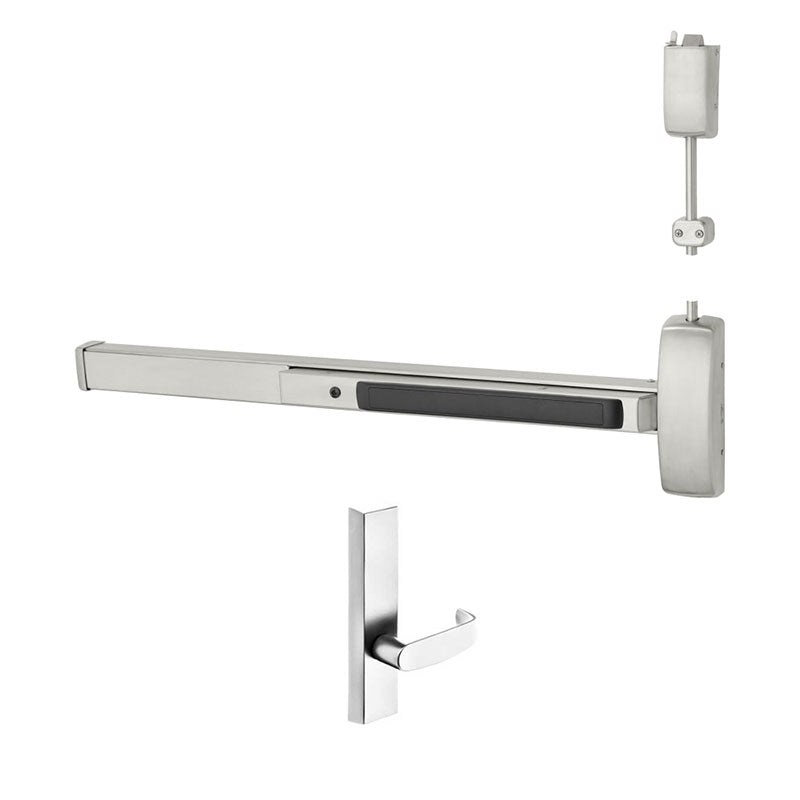

Sargent 12-NB-8715-G-ETL-96 is a 43"-48" Fire Rated Surface Vertical Rod Exit Device features a Less Bottom Rod with an ETL Passage Function Trim that Is Fire Rated. The 12-NB-8715-G-ETL-96 has an 96" high single-point top latching and comes In US32D/630 And US10B/613 Finishes.
★★★★★
What customers say about Quality Door & Hardware:
"Very happy to know they were able to get me my special order locks so quickly. I will definitely use them for my larger projects."
What are the key features of the Sargent 12-NB-8715-G-ETL-96 exit device?
The Sargent 12-NB-8715-G-ETL-96 exit device has several key features:
- Single-point top latching
- Adjustable top latch bolt projection
- Grade 1 certification
- Fire-rated (UL10C) and panic-rated (UL305)
- No bottom strike to eliminate tripping hazards
- 1/2" brass, bronze, or stainless steel rods
$2,342.93
Sargent 12-NB-8715-G-ETL-96 Fire Rated Surface Vertical Rod Exit Device, Less Bottom Rod, Passage Function, ETL Trim, 96" Dr Height, 43"-48" Dr Widths - US10B Oxidized Dull Bronze (613) / LHR - Left Hand Reverse
$2,476.09
Sargent 12-NB-8774-G-ETL-96-24V Fire Rated Surface Vertical Rod Less Bottom, ETL Trim, Fail Secure, 24V, 96" Dr Height, 43"-48" Dr Widths - US32D Satin Stainless Steel (630) / LHR - Left Hand Reverse
$2,690.59
Sargent 56-12-NB-8713-G-ETL-96 Fire Rated Surface Vertical Rod Exit Device, (56) Electric Latch Retraction, Less Bottom Rod, ETL Trim, 96” Dr Height, 43"-48" Dr Widths - US32D Satin Stainless Steel (630) / LHR - Left Hand Reverse / KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock
$2,231.89
Sargent 12-NB-8713-G-ETL-96 Fire Rated Surface Vertical Rod Exit Device, Less Bottom, ETL Trim, Key Locks Or Unlocks Outside Lever, 96" Dr Height, 43"-48" Dr Widths - US32D Satin Stainless Steel (630) / LHR - Left Hand Reverse / KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock
★★★★★
