Description

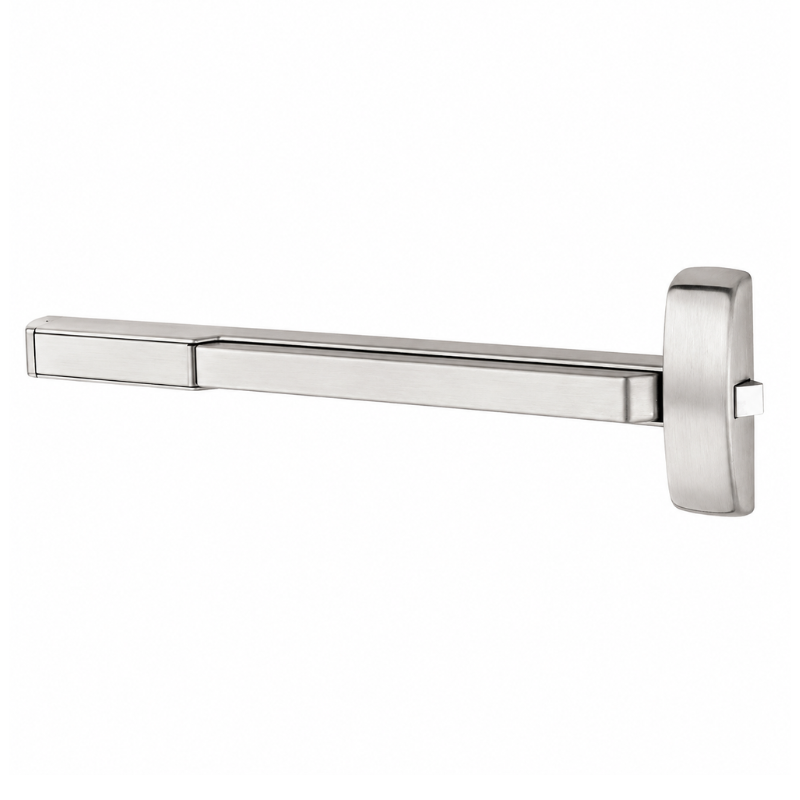

Sargent 12-PE8810-E Fire Rated Wide Stile Rim Exit Device, Dummy-Function, Exit Only, 26"-32" Inch Door, Less Dogging, Reversible Non-Handed, Grade 1
The Sargent 12-PE8810-E Fire Rated Wide Stile Rim Exit Device is a Grade 1 exit-only solution designed for 26"-32" inch doors in applications where dependable egress and fire-rated performance are required. This dummy-function rim exit device is built for wide stile doors and is supplied less dogging to maintain fire door compliance. Its reversible non-handed design helps simplify ordering and installation, while the 12-PE8810-E configuration delivers durable performance for commercial openings that need a fire rated rim device from a trusted manufacturer.
Features
-
Fire rated wide stile rim exit device designed for commercial door openings requiring code-compliant egress.
-
Dummy-function, exit only configuration supports egress operation without dogging.
-
Sized for 26"-32" inch door applications.
-
Less dogging construction is suitable for fire door use.
-
Reversible non-handed design allows installation on either hand of opening.
-
Grade 1 construction is built for heavy-duty institutional and commercial use.
Functional Details
This dummy-function, exit only device is intended for openings where the device provides the appearance and push bar arrangement of an exit device while maintaining the specified exit-only configuration. Because it is supplied less dogging, the device remains appropriate for fire-rated door applications where mechanical dogging is not permitted.
-
UL listed for Accident Hazard.
-
Certified ANSI A156.3 - 2001 grade 1.
-
Conforms to NFPA 80 requirements for fire doors and NFPA 101 for life safety.
-
Devices are non-handed and field reversible.
Included Components
This Sargent 12-PE8810-E wide stile rim exit device is furnished as a rim exit device assembly for 26"-32" inch doors in a reversible non-handed configuration. It is supplied less dogging as specified in the title.
Rail Sizes
| Stock Size | Door Opening Widths | Remarks |
| E | 24" to 32" (61 cm to 81 cm) | No cutting required for 32" (81 cm) door |
| F | 32.5" to 36" (84 cm to 91 cm) | No cutting required for 36" (91 cm) door |
| J | 36.5" to 42" (94 cm to 107 cm) | No cutting required for 42" (107 cm) door |
| G | 42.5" to 48" (110 cm to 122 cm) | No cutting required for 48" (122 cm) door |
Product Specifications
|
Manufacturer |
Sargent |
|---|---|
|
Series |
PE80 Series |
|
SKU |
12-PE8810-E |
|
Product Type |
Wide Stile Rim Exit Device |
|
Function |
Dummy-Function |
|
Operation |
Exit Only |
|
Door Width |
26"-32" Inch Door |
|
Dogging |
Less Dogging |
|
Handing |
Reversible Non-Handed |
|
Fire Rated |
Yes |
|
Grade |
Grade 1 |
|
ANSI Number |
A156.3 |
|
UL Listing Type |
UL listed for Accident Hazard |
|
BAA Qualified |
Yes |
|
Origin |
USA |
|
Unit of Measure |
Each |
|
Limited Warranty |
2 Year Limited Warranty |
Technical Specifications
|
Series |
PE80 |
|---|---|
|
Model |
12-PE8810-E |
|
Device Type |
Rim Exit Device |
|
Stile Type |
Wide Stile |
|
Certification Grade |
ANSI A156.3 Grade 1 |
|
Door Width Range |
26"-32" |
|
Handing |
Non-Handed, Field Reversible |
|
Dogging |
None |
|
Fire Door Compliance |
Conforms to NFPA 80 requirements for fire doors |
|
Life Safety Compliance |
Conforms to NFPA 101 |
|
Function Type |
Dummy, Exit Only |
