Description

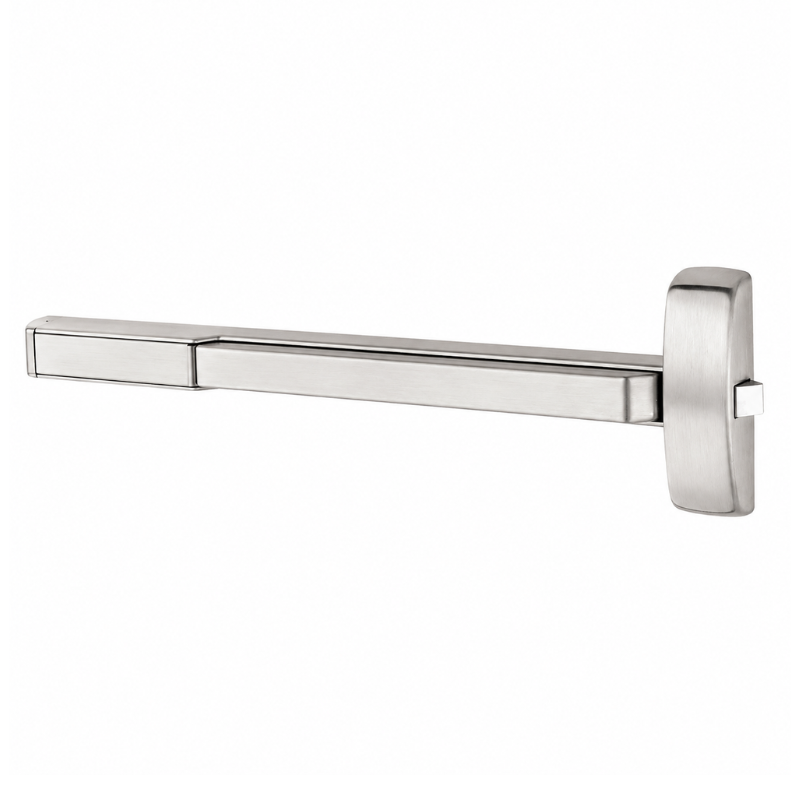

Sargent 12-PE8810-G Fire Rated Wide Stile Rim Exit Device, Dummy-Function, Exit Only, 42.5"-48" Inch Door, Less Dogging, Reversible Non-Handed, Grade 1
The Sargent 12-PE8810-G Fire Rated Wide Stile Rim Exit Device is built for reliable egress on 42.5"-48" inch doors where a dummy-function, exit only configuration is required. This Grade 1 rim exit device is designed for wide stile applications and features a reversible non-handed design for easier installation and field flexibility. Supplied less dogging for fire-rated openings, the 12-PE8810-G delivers code-compliant performance while maintaining the durability and dependable operation expected from Sargent exit hardware. It is a practical choice for commercial openings that need fire-rated protection, exit-only operation, and heavy-duty performance.
Features
-
Fire rated wide stile rim exit device designed for commercial door openings.
-
Dummy-function configuration provides exit only operation.
-
Sized for 42.5"-48" inch door applications.
-
Less dogging construction is appropriate for fire-rated use.
-
Reversible non-handed design allows flexible installation.
-
Grade 1 construction supports heavy-duty institutional and commercial use.
Functional Details
This dummy-function, exit only device is intended for openings where the hardware provides egress capability without mechanical dogging. In this configuration, the device remains suitable for fire-rated applications and supports dependable operation on wide stile rim exit doors.
-
For use on single doors with narrow, medium and wide stile applications.
-
Devices are ANSI/BHMA A156.3 - Grade 1.
-
UL listed for Accident Hazard, are certified to ANSI/UL305 and CAN/ULC-S132.
-
Fire rated devices are listed for 3 hours, UL10C and CAN/ULC-S104.
-
All devices are non-handed with the exception of mortise and secure bolt devices.
Included Components
This Sargent 12-PE8810-G exit device is supplied as a rim exit device body for fire-rated, exit only use on a 42.5"-48" inch door. It is furnished less dogging and uses a reversible non-handed configuration for installation flexibility.
Rail Sizes
| Stock Size | Door Opening Widths | Remarks |
| E | 24" to 32" (61 cm to 81 cm) | No cutting required for 32" (81 cm) door |
| F | 32.5" to 36" (84 cm to 91 cm) | No cutting required for 36" (91 cm) door |
| J | 36.5" to 42" (94 cm to 107 cm) | No cutting required for 42" (107 cm) door |
| G | 42.5" to 48" (110 cm to 122 cm) | No cutting required for 48" (122 cm) door |
Product Specifications
|
Manufacturer |
Sargent |
|---|---|
|
Series |
PE80 Series |
|
SKU |
12-PE8810-G |
|
Product Type |
Wide Stile Rim Exit Device |
|
Function |
Dummy-Function |
|
Operation |
Exit Only |
|
Door Size |
42.5"-48" Inch Door |
|
Dogging |
Less Dogging |
|
Handing |
Reversible Non-Handed |
|
Fire Rating |
Fire Rated, 3 Hours |
|
Grade |
Grade 1 |
|
ANSI Number |
A156.3 |
|
Origin |
USA |
|
Unit of Measure |
Each |
|
BAA Qualified |
Yes |
Technical Specifications
|
Model |
12-PE8810-G |
|---|---|
|
Device Type |
Rim Exit Device |
|
Stile Application |
Wide Stile |
|
Function Type |
Dummy-Function |
|
Operation Type |
Exit Only |
|
Door Width Range |
42.5"-48" |
|
Handing |
Reversible Non-Handed |
|
Dogging Configuration |
Less Dogging |
|
BHMA Grade |
Grade 1 |
|
ANSI/BHMA Standard |
A156.3 |
|
UL Standard |
ANSI/UL305 |
|
cUL Standard |
CAN/ULC-S132 |
|
Fire Test Standard |
UL10C |
|
Canadian Fire Test Standard |
CAN/ULC-S104 |
|
Fire Rating Duration |
3 Hours |
