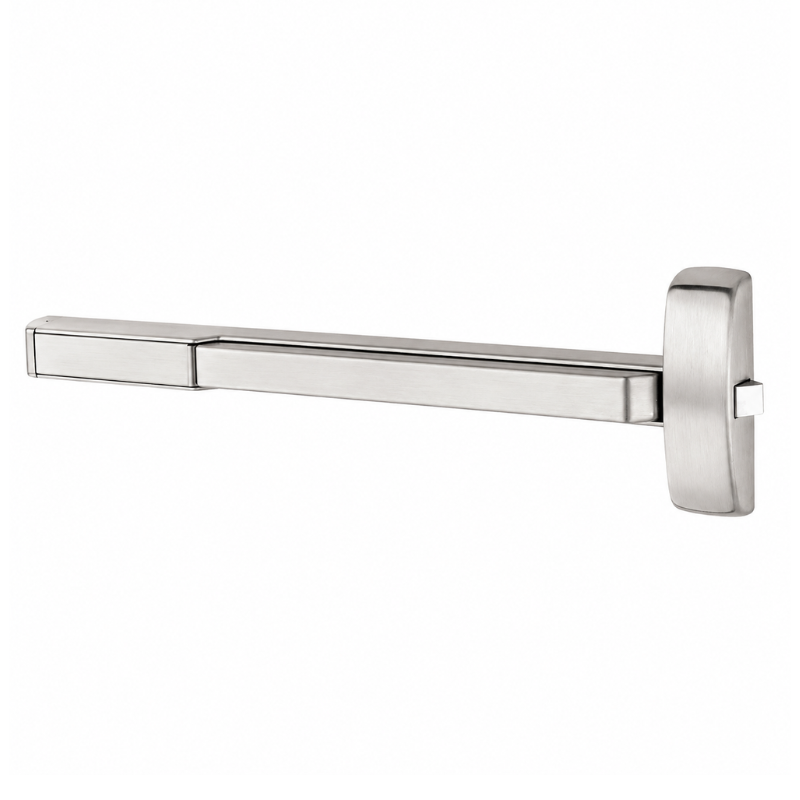

Sargent 12-PE8810-J Fire Rated Wide Stile Rim Exit Device, Dummy-Function, Exit Only, 36.5"-42" Inch Door, Less Dogging, Reversible Non-Handed, Grade 1

The Sargent 12-PE8810-J Fire Rated Wide Stile Rim Exit Device is built for dependable exit-only operation on 36.5"-42" inch doors in commercial openings that require fire-rated life safety hardware. This dummy-function rim exit device is designed as an exit only unit and comes less dogging to meet fire door requirements. Its reversible non-handed design helps simplify installation and inventory planning, while the Grade 1 construction supports demanding institutional, commercial, and public building applications. As part of the PE80 Series, the 12-PE8810-J combines fire-rated performance, wide stile compatibility, and durable rim exit device construction in a reliable Sargent solution.

Features

• Fire rated wide stile rim exit device designed for commercial door openings requiring code-compliant egress hardware.

• Dummy-function configuration provides exit only operation.

• Sized for 36.5"-42" inch door applications.

• Supplied less dogging for fire-rated door compliance.

• Reversible non-handed construction allows installation without regard to door hand.

• Grade 1 device meets heavy-duty performance requirements.

• Part of the Sargent PE80 Series rim exit device offering.

Functional Details

This dummy-function exit device is intended for exit only applications where the device is used on the egress side without outside operating trim. Because this is a fire rated device, it is supplied less dogging, which helps maintain the required latching condition for fire door assemblies.

• Fire labeled devices are supplied less mechanical dogging.

• All PE80 Series exit devices are field reversible.

• Devices are ANSI/BHMA A156.3 Grade 1.

Included Components

This Sargent 12-PE8810-J PE80 Series device is furnished as a fire rated wide stile rim exit device body for exit only use, sized for 36.5"-42" inch doors, with reversible non-handed configuration and no dogging feature.
