Technical Specs
| Type |
Surface |
| Technology |
Hydraulic |
| Mounting Location |
Push Side |
| Mounting Style |
Parallel Arm |
| Hold Open |
No |
| Arm Type |
Parallel Arm |
| Hand |
Non-Handed |
| Back Check |
Adjustable |
| Delay |
Yes |
| Cover |
Plastic |
| Through Bolts |
Yes |
| Cold Weather Fluid |
Yes |
| Product Type |
Surface Closers |
Product Specs
| Manufacturer |
Sargent |
| Grade |
Grade 1 |
| Installation |
Commercial |
| Unit of Measure |
Each |
| Base Material |
VARIES |
| Limited Warranty |
25 Years |
| Fire Rated |
3 Hours {A} |

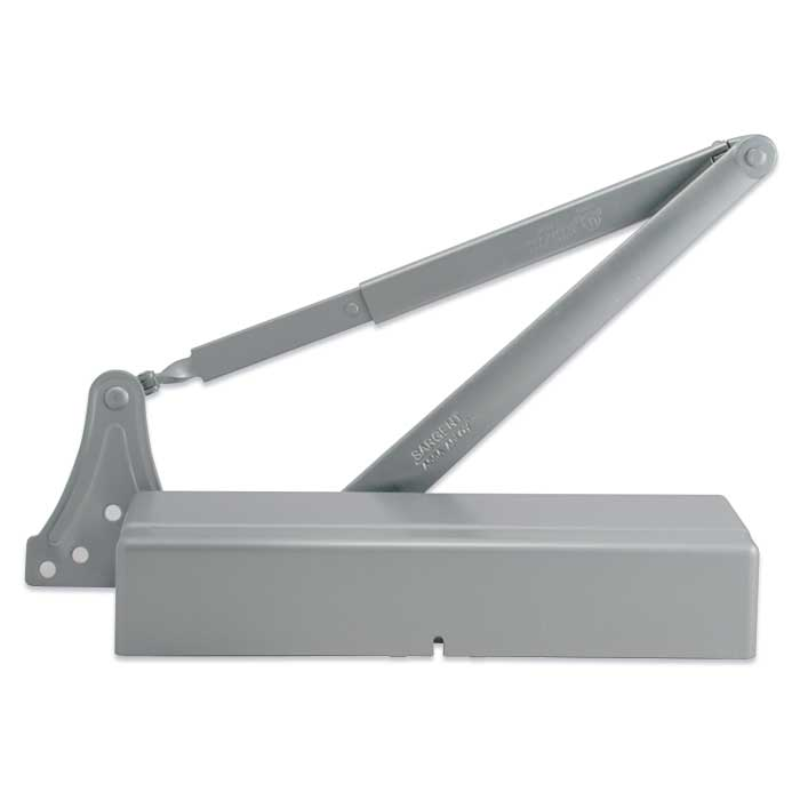

The Sargent 1431-P9-DA-TB Door Closer Powerglide is Delayed Action and Features a Standard Parallel Arm, Comes with Thru Bolts, Is a Commercial Closer Surface Mounted Heavy Duty Door Closer. 1431 P9 TB - Standard Parallel Arm, Forged Steel Arm 11-1/4" (286mm) long Non-handed.This Closer IS Certified ANSI/BHMA A156.4 Grade 1 UL 10C listed for positive pressure fire test UL / cUL listed for use on fire-rated doors, 1431 P9 Door Closer Is Ideal For Use In Heavy Traffic Ares, Institutions, Meets ADA requirements in all applications, except Push Side Track application.
