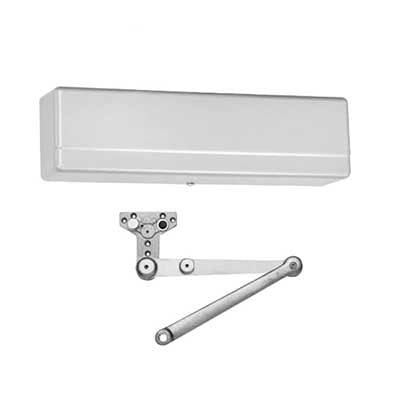

The Sargent 1431-PSH-DA-TB Powerglide Door Closer is Delayed Action, features a PSH, Parallel Stop/Holder Heavy-Duty Arm, The 1431 PSH Is a Commercial Closer Surface Mounted Heavy Duty Door Closer. 1431 PSH Features, Meets ADA requirements in all applications, except Push Side Track application, The 1431 PSH - Heavy Duty Parallel Hold Open Arm with positive Stop, provides holder and stop features Handed arm is field-reversible Easily installed/adjusted Permits 85 ° - 110 ° door opening and comes with thru bolts. This Closer IS Certified ANSI/BHMA A156.4 Grade 1 UL 10C listed for positive pressure fire test UL / cUL listed for use on fire-rated doors, This Door Closer Is Ideal For Use In Heavy Traffic Ares, Institutions.

1431 Surface Door Closers

ADA compliant except Push Side Track application.

• Exceeds 15 Million cycles

• Certified ANSI/BHMA A156.4 Grade 1

• UL 10C listed for positive pressure fire test

• UL / cUL listed for use on fire rated doors

• 25 year limited warranty

• User friendly versatile mounting applications permit standard, top jamb, parallel and track installations

• Self sticking templates supplied for most applications

• Adjustable spring power allows 1431 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory

• One door closer body for all applications. All 1431 are non-handed

• Meets ADA requirements in all applications, except Push Side Track application (except track)

• High impact non-corrosive plastic covers with two machine screws standard, metal covers and lead lined are optional

• All weather fluid allows closer to operate effectively in extreme temperatures without readjustment

• 1-1/2" diameter piston for superior door control

• Standard pressure relief valves for both opening and closing cycles protect the door and frame from damage caused by abuse

• Retrofits existing SARGE
