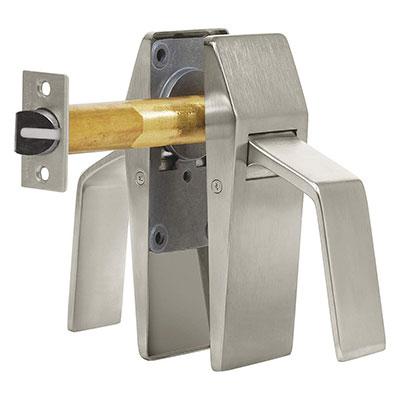

Sargent 24-114-US26D Hospital Latches for Push-Pull Doors, 2-3/4" Backset, No Push/Pull Trim, Satin Chrome Finish, Handed
No Push/Pull Stamp, Both Paddles are pointed downwards.
The Sargent 24-114-US26D Hospital Latch for Push-Pull Doors, Finish Is US26D/626 Satin Chrome Finish with 2-3/4" backset. This Sargent Hospital push-pull has both paddles facing down, comes with a 4 7/8" or 2 3/4" strike options, and is handed. Right Hand, Left Hand, Left Hand Reverse or Right-Hand Reverse swings.
Designed for convenience and functionality, the 114 Hospital Latches open with a gentle pull or slight push, making them ideal for hands-free operation in settings like hospitals and nursing care centers. Each is available with “PUSH” and “PULL” stamped into the top of the escutcheon and feature slim tapered paddles for a clean, aesthetic look.
Specifications
| For Doors: | 1-3/4" (44mm) to 2-1/4" (57mm) |
| Backset: | 5" (127mm) standard. For 2-3/4" (70mm) backset (specify as 24-115) and 7" (177mm) backset (specify as 26-115) available on order |
| Strike: | 2-3/4" (70mm) ANSI A115.2 curved lip strike #800 OR 28- 4-7/8" (124mm) ANSI curved lip strike # 808 |
| Bolt: | Brass, 1/2" (13mm) throw |
| Hand: | Specify hand (RHR, RH, LHR or LH) |
| 114: | Push/Pull Paddles - both mounted down position only. Cast; Projection from door 3-1/4" (83mm) |
| Escutcheons: | Cold drawn; 2-1/2" (64mm) x 6-7/8" (175mm) |
| UL Listed: | UL Listed for use on fire doors. See Underwriters Laboratories Building Materials List |
