Description

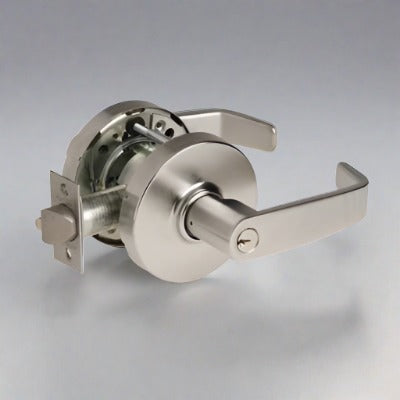

Experience top-of-the-line security with the Sargent 28-10G04-LL Storeroom or Closet Cylindrical Lever Lockset. This Grade 1 heavy-duty lockset is perfect for institutions, schools, office spaces, healthcare facilities, storerooms, and classrooms, offering unrivaled protection. Featuring a 2-3/4" backset, 4-7/8" strike, and L Rose/L Lever, it ensures reliable access control and provides robust security with its commercial-grade design.
Features
- ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
- UL-cUL listed for 3 hour fire doors and windstorm applications
- Freewheeling trim optional
- Available in 21 different functions, including classroom security and electromechanical options for access control applications
- Offered in 12 architectural grade finishes to match any decor
- Integrates into most existing facility key systems including Sargent security systems (Degree, Signature, KESO, and XC; also accept Schlage® and Medeco LFIC)
- 6 lever designs, 2 rose designs offered
- 7 year warranty
- Applications: Offices, Schools/Universities, Hospitals, Manufacturing
Product Specs
| Vendor | ASSA ABLOY |
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Heavy Duty |
| Limited Warranty | 7 Years |
| Fire Rated | 3 Hours {A} |
Technical Specs
| ANSI Function |
F86 - Storeroom |
| Handing | Not Handed |
| Door Thickness | 1-3/4" - 2" |
| Std. Latch Number | 44491 |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 808 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Dust Box | None |
| Screws | Combination |
| Product Type | Cylindrical Lock |
