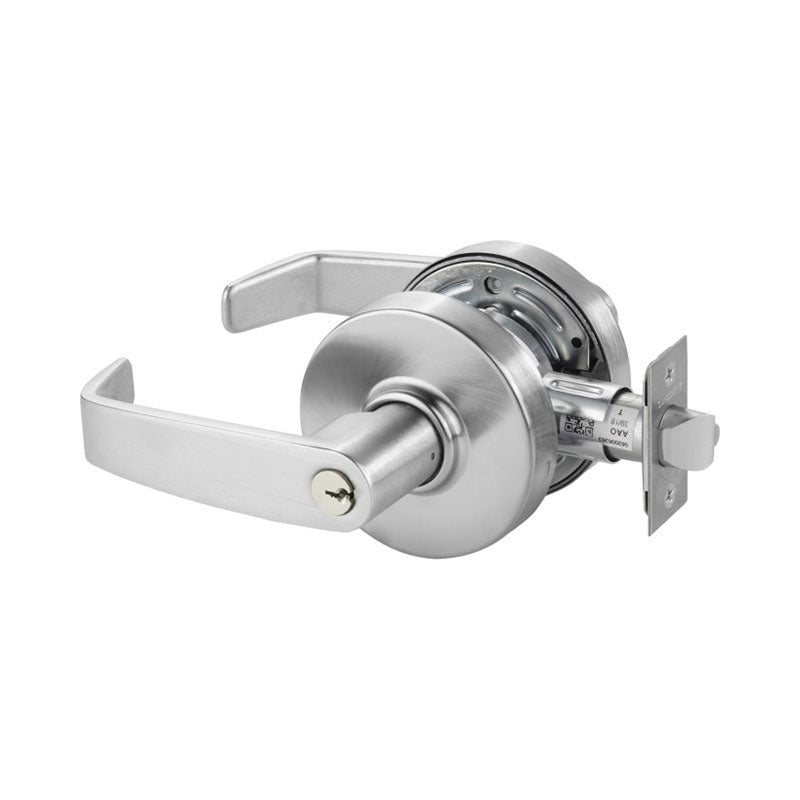

The Sargent 28-7G05-LL is an Entrance or Office function cylindrical lever lockset that is Grade 2, comes with a Standard LA Keyway, an L Rose, with a L Lever, and comes in a variety of finishes.

7-Line Bored Lever Locks

Sargent's 7 Line Bored Lever Locks are designed with a solid feel and a precise lever action.

• For Doors: 1-3/4" (44mm) Thick Door standard Specify 1- for 1-3/8" (35mm) Thick Door
• Backset: 2-3/4" (70mm) Backset standard. Specify 20- for 2-3/8" (60mm) Backset
• Cylindrical Housing: Steel, zinc dichromate finish
• Front: Wrought brass or stainless steel; Standard — 2-1/4" (57mm) x 1-1/8" (29mm), with 2-3/4" (70mm) backset Specify 20- for 2-1/4" (57mm) x 1" (25mm), with 2-3/8" (60mm) backset
• Strike: Wrought brass or stainless steel 2-3/4" Curved Lip Strike standard 4-7/8" Curved Lip (28-) and 2-1/4" Full Lip (14-) Strikes Optional
• Hand: Non-handed — B, L, P lever designs Handed — G and Y Coastal Series lever designs
• Latch: Brass 1/2" (13mm) throw
• Keys: Two, nickel silver
• Cylinder: Brass, 6-pin, LA keyway standard Can be master keyed or grand master keyed
• Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL 14, 15, 20D, 26 & 26D
• Door Prep: ANSI A115.2; Specify 20- for 160 Prep
