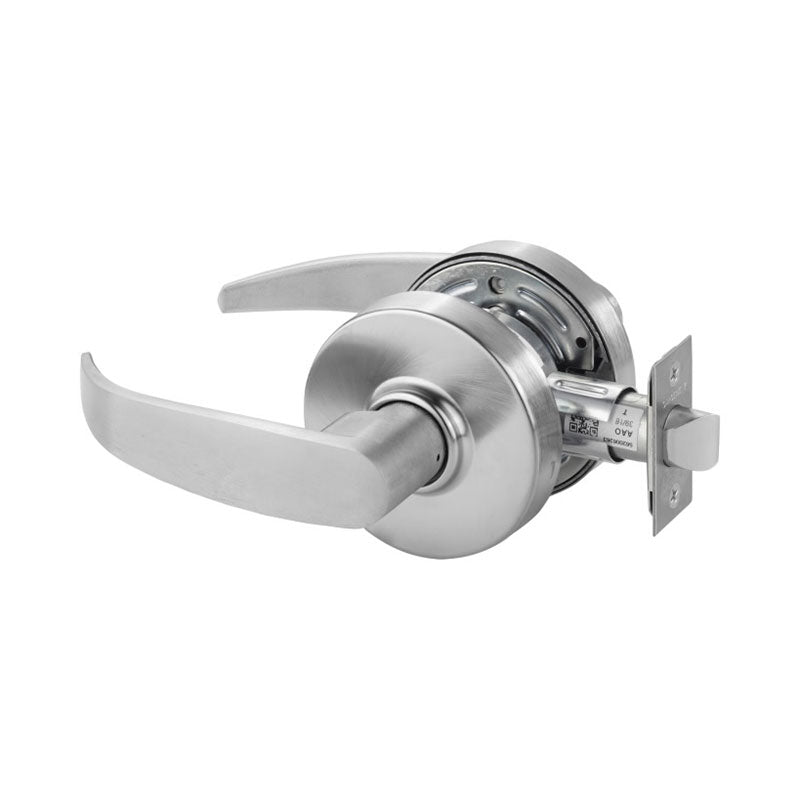

Sargent 28-7U15-LP Passage Cylindrical Lever Lock, L Rose, P Lever, Grade 2

  • SKU: 287U15LPUS26D

Sargent 28-7U15-LP Passage Cylindrical Lever Lock, L Rose, P Lever, Grade 2

  • SKU: 287U15LPUS26D
Sale price$251.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US26D Satin Chrome (626)

The Sargent 28-7U15-LP is a Passage function cylindrical lever lockset that is Grade 2, Non-Keyed, has an L Rose, with a P Lever, and comes in a variety of finishes.

7-Line Bored Lever Locks

Sargent's 7 Line Bored Lever Locks are designed with a solid feel and a precise lever action.

A key-in-lever lock designed for standard-duty commercial exterior and interior doors in offices, commercial interiors, medical clinics, government facilities, and public buildings. Exceeds ANSI/BHMA A156.2 Standards for cycling and durability.

  • For Doors: 1-3/4" (44mm) Thick Door standard Specify 1- for 1-3/8" (35mm) Thick Door
  • Backset: 2-3/4" (70mm) Backset standard. Specify 20- for 2-3/8" (60mm) Backset
  • Cylindrical Housing: Steel, zinc dichromate finish
  • Front: Wrought brass or stainless steel; Standard — 2-1/4" (57mm) x 1-1/8" (29mm), with 2-3/4" (70mm) backset Specify 20- for 2-1/4" (57mm) x 1" (25mm), with 2-3/8" (60mm) backset
  • Strike: Wrought brass or stainless steel 2-3/4" Curved Lip Strike standard 4-7/8" Curved Lip (28-) and 2-1/4" Full Lip (14-) Strikes Optional
  • Hand: Non-handed — B, L, P lever designs Handed — G and Y Coastal Series lever designs
  • Latch: Brass 1/2" (13mm) throw
  • Keys: Two, nickel silver
  • Cylinder: Brass, 6-pin, LA keyway standard Can be master keyed or grand master keyed
  • Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL 14, 15, 20D, 26 & 26D
  • Door Prep: ANSI A115.2; Specify 20- for 160 Prep
Manufacturer Sargent
SKU 28-7U15 LP
Grade Grade 2
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2, Series 4000, Grade 2, UL Listed
ANSI Number F75
BAA Qualified Yes
Limited Warranty 5 Year Warranty
Fire Rated 3 Hours {A}
Burglar Rated No



Function 15-Passage
Function Family Passage
ANSI Function F75 - Passage
Lever/Knob Design P Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design 3 3/8" Rose Diameter
Rose/Escutcheon Dimensions 3 3/8"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1 3/4"
Std. Latch Number 194493
Std. Latch Type Spring latch
Std. Latch Backset Dim 2 3/4"
Latch Bore Diameter 7/8"
Lock Face Size 1 1/8 x 2 1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2 1/8"
Std. Strike Number 808
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4 7/8"
Std. Strike Width 1 1/4"
Dust Box None
Screws Wood/Machine Screws
Product Type Cylindrical Lock
